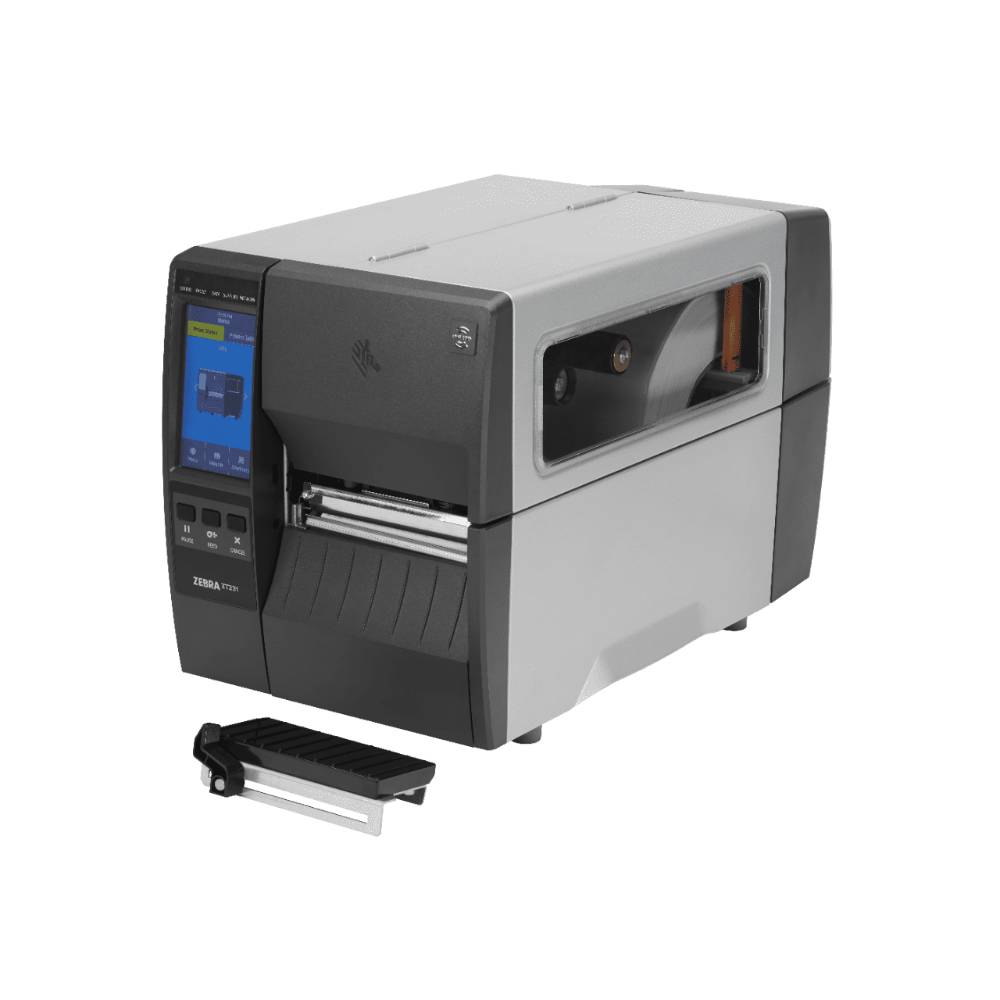

ZEBRA ZT231R Thermal Transfer 203DPI RFID Label Printer

The Zebra ZT231R is a compact yet powerful RFID thermal transfer label printer, offering 203 DPI resolution and a maximum print speed of 305 mm/s. Designed for industrial applications, it supports UHF RFID encoding, ensuring real-time tracking and compliance. Featuring a user-friendly color touchscreen, multiple connectivity options (USB, RS232, Ethernet, Bluetooth BLE), and Zebra’s advanced Print DNA suite, it delivers reliable, high-quality label printing with future-ready adaptability.

Included in the box: ZT231R Printer, Power supply unit & Power Cable (EU & UK).

Manufacturer: Zebra

Availability: 1 in stock

SKU: 20381

Reference Code: ZT23142-T0E00CFZ

€3317.18 incl VAT

Qty: decrease increase

The Zebra ZT231R RFID Thermal Transfer Label Printer combines affordability, efficiency, and advanced RFID capabilities in a compact industrial design. With 203 DPI resolution and a fast print speed of up to 305 mm/s, it ensures high-quality label printing while meeting escalating compliance and tracking demands.

Designed for seamless RFID adoption, the ZT231R features Zebra’s intuitive RE40 RFID module, offering easy setup, auto-calibration, and flexible encoding. The space-saving bi-fold door minimizes footprint while still accommodating large ribbon rolls for extended printing operations. A full-color touchscreen enhances usability, allowing quick access to settings and troubleshooting guides.

Equipped with multiple connectivity options, including USB, RS232, Ethernet, and Bluetooth BLE, the ZT231R integrates easily into existing workflows. Built with a durable metal frame, it withstands light-industrial environments while supporting future upgrades and evolving RFID technology. Ideal for manufacturing, retail, logistics, and healthcare, this printer ensures long-term performance and efficiency.

Connectivity & Integration

Multiple interfaces: USB, USB Host, RS232, Ethernet, Bluetooth BLE
Compatible with Zebra’s Print DNA software for seamless workflow integration

User-Friendly & Efficient

Intuitive full-color touchscreen for easy operation
Auto-calibration and adaptive encoding for seamless RFID setup
Compact design with a space-saving bi-fold door

RFID & Printing Capabilities

UHF RFID printing and encoding for real-time tracking
203 DPI resolution with a maximum print speed of 305 mm/s
Supports media up to 114 mm wide with a 104 mm max print width

Connectivity & Integration

Multiple interfaces: USB, USB Host, RS232, Ethernet, Bluetooth BLE
Compatible with Zebra’s Print DNA software for seamless workflow integration

User-Friendly & Efficient

Intuitive full-color touchscreen for easy operation
Auto-calibration and adaptive encoding for seamless RFID setup
Compact design with a space-saving bi-fold door

RFID & Printing Capabilities

UHF RFID printing and encoding for real-time tracking
203 DPI resolution with a maximum print speed of 305 mm/s
Supports media up to 114 mm wide with a 104 mm max print width

Standard Features

• Print methods: direct-thermal or thermal-transfer
• Construction: metal frame and metal enclosures
• Bi-fold media door with large clear window

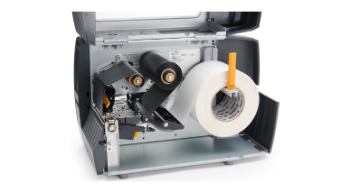

• Side-loading supplies path for simplified media and ribbon loading
• Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
• Three-color LEDs for quick printer status
• 4.3” color resistive touch screen with intuitive menu for quick operation and settings

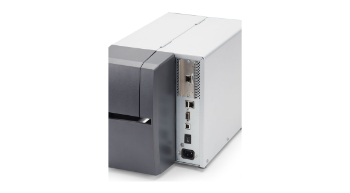

• Communications: USB 2.0, RS-232 Serial port, 10/100 Ethernet, and USB Host
• ENERGY STAR® certified
• Bluetooth Low Energy (BTLE) technology for enhanced location precision
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner
• Real-Time Clock (RTC)

Physical Characteristics

Dimensions*	ZT231 Closed: 17 in. L x 9.5 in. W x 11 in. H 432 mm L x 241 mm W x 279 mm H ZT231 with Liner Takeup Unit: 17 in. L x 9.5 in. W x 12.75 in. H 432 mm L x 241 mm W x 324 mm H
Weight	ZT231: 20 lbs./9.1 kg ZT231 with Liner Takeup Unit: 24 lbs./10.9 kg
	*Dimensions are for the base model printer. Consult your salesrepresentative for specifics regarding other configurations.

Printer Specifications

Resolution	203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional)
Memory	256 MB SDRAM memory 256 MB on-board linear Flash memory
Maximum Print Width	4.09 in./104 mm
Maximum Print Speed	12 ips (203 dpi) 8 ips (300 dpi)
Media Sensors	Moveable transmissive and reflective sensors
Maximum Print Length	203 dpi: 157 in/3988 mm 300 dpi: 73in/1854 mm

Media Characteristics

Minimum Label and Liner Length	Tear mode: 0.7 in/18 mm Cutter mode: 1 in/25 mm Peel mode: 0.5 in/13 mm
Media Width	0.75 in./19.4 mm to 4.50 in./114 mm
Media Roll Size	8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core 6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core
Media Thickness	0.003 in./0.076 mm to 0.010 in./0.25 mm
Media Types	Continuous, die-cut, notch, black mark

Ribbon Characteristics (Thermal-transfer option only)

Standard Length	1,476 ft./450 m
Width	2 in./51 mm to 4.33 in./110 mm
Core	1.0 in./25.4 mm

Operating Characteristics

Operating Temp.	Thermal transfer: 40ºF to 105ºF/5º to 40ºC Direct thermal: 32ºF to 105ºF/0º to 40ºC
Storage/Transportation Temperature	-40ºF to 140ºF/-40º to 60ºC
Operating Humidity	20% to 85% non-condensing
Storage Humidity	5% to 85% non-condensing
Electrical	Universal auto-ranging (PFC-compliant) power supply 100-240 VAC; 50-60 Hz ENERGY STAR certified
Agency Approvals	IEC 62368-1, EN55022 Class B, EN55024, EN55035, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, UKCA, VCCI, RCM, S- Mark, CCC, CU EAC, BSMI, KCC, and BIS

Print DNA Software

This printer is supported by our Print DNA suite of software capabilities to get your printer up and running quickly and securely, and enable your printer to evolve with your business needs. Print DNA features may vary by model, and some features may require a license.
For more information, please visit
www.zebra.com/printdna

Firmware

ZBI 2.0™ — Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals, and much more.
ZPL and ZPL II™ — Zebra Programming Language provides sophisticated label formatting and printer control and is compatible with all Zebra printers.
EPL and EPL2™— Eltron Programming Language simplifies label formatting and enables format compatibility with legacy applications. (EPL available on 203 dpi models only.)

Barcode Symbologies

Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN with
2 or 5 digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D Barcodes: Aztec, Codablock, PDF417, Code 49, Data Matrix, MaxiCode, QR Code, MicroPDF417, TLC 39, RSS-14 (and composite)

Fonts and Graphics

Z7 bitmapped, 1 smooth-scalable (CG Triumvirate™ Bold Condensed) Pre-loaded Unicode™-compliant scalable fonts for EMEA character sets International character sets supporting the following code page: IBM® Code Page 850
Supports user-defined fonts and graphics, including custom logos ZPL II drawing commands including boxes and lines 64 MB user available Flash memory storage for downloadable objects; 32 MB user-available SDRAM

Options and Accessories

Communication
• 802.11ac Wi-Fi option card
• 10/100 Ethernet option card
• Applicator Interface
Media Handling
• Peel — a front-mount, passive-peel with no take-up spindle
• Peel — a front-mount, passive-peel with liner take-up spindle (factory-fit only)
• Cutter — a front-mount guillotine cutter
RFID
• UHF field-installable RFID kit
Keyboard Display Unit
• ZKDU™ keyboard display units for stand-alone printing applications
