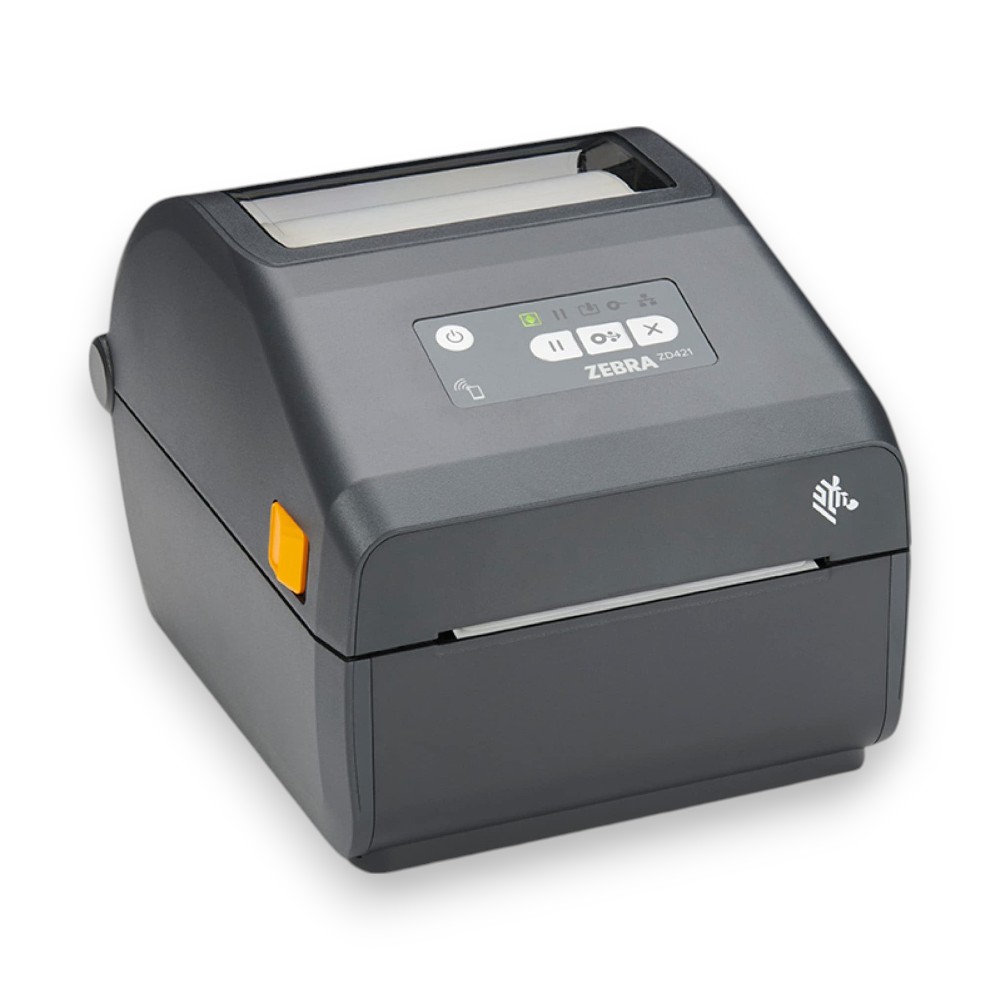

The Zebra ZD421 (ZD4A042-D0EE00EZ) is a next-generation desktop label printer designed for efficiency and reliability. With its direct thermal printing technology, it eliminates the need for ink or ribbons while delivering crisp, high-quality labels at a resolution of 203 dpi (8 dots/mm). Its compact yet durable design makes it an ideal choice for retail, healthcare, logistics, and warehouse environments where fast and accurate printing is essential.
Equipped with versatile connectivity options, including USB, USB Host, Bluetooth Low Energy (BLE 5), and Ethernet, the ZD421 integrates seamlessly into various setups. It supports a maximum media width of 108 mm and a print width of up to 104 mm, handling a variety of label sizes for different applications. The real-time clock, Black Mark Sensor, and Gap Sensor enhance precision, ensuring consistent print accuracy. With a print speed of up to 152 mm/s, it helps businesses optimize workflow and improve productivity.
High-Performance Printing
Versatile Media Handling
Seamless Connectivity & Reliability
The Zebra ZD421 (ZD4A042-D0EE00EZ) is a next-generation desktop label printer designed for efficiency and reliability. With its direct thermal printing technology, it eliminates the need for ink or ribbons while delivering crisp, high-quality labels at a resolution of 203 dpi (8 dots/mm). Its compact yet durable design makes it an ideal choice for retail, healthcare, logistics, and warehouse environments where fast and accurate printing is essential.
Equipped with versatile connectivity options, including USB, USB Host, Bluetooth Low Energy (BLE 5), and Ethernet, the ZD421 integrates seamlessly into various setups. It supports a maximum media width of 108 mm and a print width of up to 104 mm, handling a variety of label sizes for different applications. The real-time clock, Black Mark Sensor, and Gap Sensor enhance precision, ensuring consistent print accuracy. With a print speed of up to 152 mm/s, it helps businesses optimize workflow and improve productivity.
High-Performance Printing
Versatile Media Handling
Seamless Connectivity & Reliability
Category | Details |
---|---|
Print Methods | Thermal Transfer or Direct Thermal |
Programming Languages | ZPL and EPL |
User Interface | 5 status icon, 3 button user interface |
Connectivity | USB 2.0, USB Host |
Mobile App Setup | Printer setup mobile app for Android and iOS via BLE (Bluetooth Low Energy 5) connection* |
Additional Features | Real Time Clock (RTC) OpenACCESS™ for easy media loading Dual-wall frame construction ENERGY STAR® certified ZebraDesigner Essentials – free label design tool at www.zebra.com/zebradesigner |
Dimensions | 8.69 in. L x 6.98 in. W x 5.93 in. H (220.8 mm x 177.5 mm x 150.7 mm) |
Weight | 2.98 lbs./1.35 kg |
Operating System | Link-OS |
Resolution | 203 dpi/8 dots per mm (300 dpi/12 dots per mm optional) |
Memory | 512 MB Flash; 256 MB SDRAM |
Maximum Print Width | 4.09 in./104 mm (203 dpi) 4.16 in./106 mm (300 dpi) |
Maximum Print Speed | 6 in./152 mm per second (203 dpi), 4 in./102 mm per second (300 dpi) |
Media Sensors | Full width, moveable reflective/black mark sensor; multi-position transmissive/gap sensor |
Supported Programming Languages | ZPL II, EPL 2, XML, ZBI, PDF Direct |
Media Width | 0.585 in./15 mm to 4.25 in./108 mm |
Media Roll Size | Maximum outer diameter: 5.00 in./127 mm Core inner diameter: 0.5 in./12.7 mm and 1.0 in./25.4 mm standard |
Media Thickness | 0.003 in. (0.08 mm) min. - 0.0075 in. (0.19 mm) max. |
Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, wristbands |
Operating Temperature | 40° to 105° F (4.4° to 41° C) |
Storage Temperature | -40° to 140° F (-40° to 60° C) |
Operating Humidity | 10% to 90% non-condensing |
Storage Humidity | 5% to 95% non-condensing |
Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; optional 2750 mAh battery |
Communication Options | Factory Installed: Ethernet 10/100, dual radio Wi-Fi 5 (802.11ac) & Bluetooth 4.1; Wi-Fi 6 (802.11ax) & Bluetooth 5.3 (MIMO) Field Installable: Ethernet 10/100, dual radio Wi-Fi 5 (802.11ac) & Bluetooth 4.1; Wi-Fi 6 (802.11ax) & Bluetooth 5.3 (SISO); Serial RS-232 auto-sensing |
Included in the Box | Printer, AC power supply, power cord(s), USB cable, Quick Start Guide, Regulatory Guide ZD421 Thermal Transfer includes: (2) 300 m ribbon core adapters for non-Zebra ribbon, additional empty ribbon take-up core (1 in.) |
Regulatory Compliance | IEC 60950-1, IEC 62368-1, FCC Class B, CE Marking, VCCI, C-Tick, BSMI, KCC, SABS, BIS, NOM, and more. RoHS Directive 2011/65/EU; Amendment 2015/863 REACH SVHC 1907/2006 |
Zebra DNA for Printers | Software tools and applications for optimizing printer performance. More info at www.zebra.com/zebradna |
