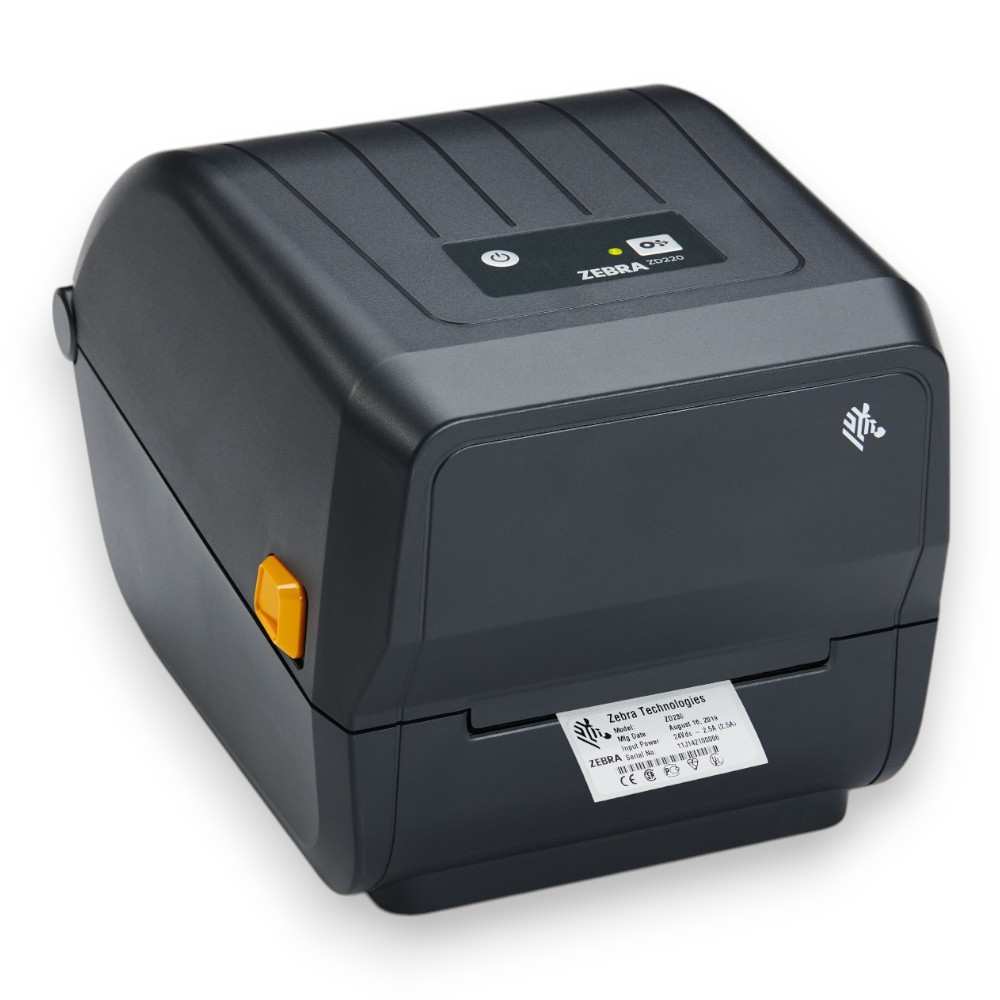

Zebra ZD220 Thermal Transfer 203dpi USB Label Printer

Zebra ZD220 Thermal Transfer Label Printer, 203 dpi (8 dots/mm), max. media width: 112 mm, max. print width: 104 mm, max. roll diameter: 127 mm, ribbon core: 12.7 mm, print speed: 102 mm/s, USB connectivity, supports EPLII, ZPLII, XML emulations.


Included in the box: Printer, Power supply unit & Power cable UK


Zebra offers a free software package to design and print labels called ZebraDesigner Essentials. Click Here for more info

Manufacturer: Zebra
Availability: 2 in stock
SKU: 909000214
Reference Code: ZD22042-T0EG00EZ
€245.00 incl VAT
decrease increase
Share
banner

The Zebra ZD220 Thermal Transfer Label Printer is a durable and cost-effective printing solution designed for businesses that require long-lasting, high-quality labels. Unlike direct thermal printers, the thermal transfer technology allows for the use of ribbons, ensuring labels remain readable and resistant to fading over time—making it ideal for applications such as product labeling, asset tracking, and inventory management.


With a resolution of 203 dpi (8 dots/mm), the ZD220 produces sharp, clear text and barcodes. It supports a media width of up to 112 mm, a print width of 104 mm, and a roll diameter of 127 mm, allowing for versatile label production. The printer is equipped with USB connectivity for simple plug-and-play operation and supports popular printer languages, including EPLII, ZPLII, and XML, ensuring easy integration into existing systems. The ZD220 comes with a power supply unit and a UK power cable for quick and hassle-free setup.


Reliable Thermal Transfer Printing

  • Uses ribbon-based thermal transfer technology for durable, long-lasting labels
  • 203 dpi resolution for sharp text and barcodes
  • Prints at speeds of up to 102 mm/s for efficient label production

Versatile Media Support

  • Supports up to 112 mm media width and 104 mm print width
  • Compatible with 12.7 mm ribbon core for thermal transfer printing
  • Maximum roll diameter of 127 mm for extended use

User-Friendly & Efficient

  • Simple USB connectivity for easy system integration
  • Supports EPLII, ZPLII, and XML printer languages
  • Includes power supply unit and UK power cable for immediate setup

The Zebra ZD220 Thermal Transfer Label Printer is a durable and cost-effective printing solution designed for businesses that require long-lasting, high-quality labels. Unlike direct thermal printers, the thermal transfer technology allows for the use of ribbons, ensuring labels remain readable and resistant to fading over time—making it ideal for applications such as product labeling, asset tracking, and inventory management.


With a resolution of 203 dpi (8 dots/mm), the ZD220 produces sharp, clear text and barcodes. It supports a media width of up to 112 mm, a print width of 104 mm, and a roll diameter of 127 mm, allowing for versatile label production. The printer is equipped with USB connectivity for simple plug-and-play operation and supports popular printer languages, including EPLII, ZPLII, and XML, ensuring easy integration into existing systems. The ZD220 comes with a power supply unit and a UK power cable for quick and hassle-free setup.


Reliable Thermal Transfer Printing

  • Uses ribbon-based thermal transfer technology for durable, long-lasting labels
  • 203 dpi resolution for sharp text and barcodes
  • Prints at speeds of up to 102 mm/s for efficient label production

Versatile Media Support

  • Supports up to 112 mm media width and 104 mm print width
  • Compatible with 12.7 mm ribbon core for thermal transfer printing
  • Maximum roll diameter of 127 mm for extended use

User-Friendly & Efficient

  • Simple USB connectivity for easy system integration
  • Supports EPLII, ZPLII, and XML printer languages
  • Includes power supply unit and UK power cable for immediate setup
CategoryDetails
Physical CharacteristicsDimensions:
Thermal Transfer: 10.5 in. L x 7.75 in. W x 7.5 in. H (267 mm x 197 mm x 191 mm)
Direct Thermal: 8.6 in. L x 6.9 in. W x 5.9 in. H (220 mm x 176 mm x 151 mm)

Weight:
Thermal Transfer: 3.7 lbs./1.7 kg
Direct Thermal: 2.5 lbs./1.1 kg
Printer SpecificationsResolution: 203 dpi/8 dots per mm
Memory: 128 MB Flash; 128 MB SDRAM
Maximum Print Width: 4.09 in./104 mm
Print Speed: 4 in./102 mm per second
Media Sensors: Movable black mark sensor (limited range from center to left side), Fixed off-center gap sensor
Firmware: ZPL II; EPL 2; XML
Media and Ribbon CharacteristicsMaximum Label Length: 39.0 in./991 mm
Media Width: 1.00 in./25.4 mm to 4.4 in./112 mm
Media Roll Size: 5.00 in./127 mm outer diameter
Core Inner Diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm) using optional adapters
Thickness: 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only)
Media Types: Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, wristbands

Ribbon Specifications:
Outside Diameter: 1.34 in./34 mm (74 m)
Maximum Length: 244 ft. (74 m)
Ratio: 1:1 ribbon to media (74 m)
Width: 1.33 in./33.8 mm - 4.3 in./109.2 mm
Core I.D.: 74 meter ribbon 0.5 in./12.7 mm
Operating CharacteristicsOperating Temperature: 40° to 105° F (4.4° to 41° C)
Storage Temperature: -40° to 140° F (-40° to 60° C)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 95% non-condensing
Electrical: Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified
Fonts/Graphics/SymbologiesBar Code Ratios: 2:1 and 3:1
1D Barcodes: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec

Fonts and Graphics:
16 resident expandable ZPL II bitmap fonts
Two resident scalable ZPL fonts
Five resident expandable EPL2 fonts
Native open-type font support
Unicode compliant for multi-language, on-demand thermal printing
50 MB user available non-volatile memory, 8 MB user available SDRAM
Regulatory ComplianceIEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
*
*
*
*
