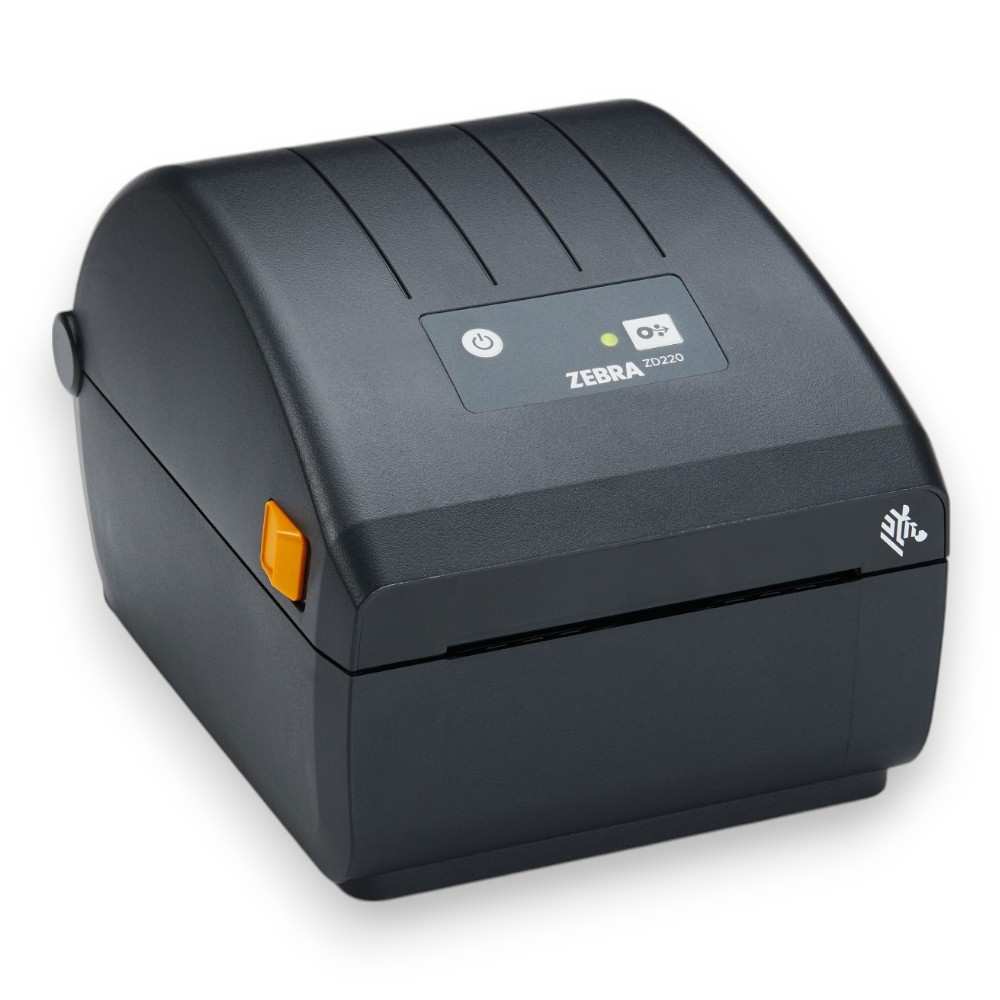

Zebra ZD220 Direct Thermal 203dpi USB Label Printer

Zebra ZD220 Direct Thermal Label Printer, 203 dpi (8 dots/mm), max. media width: 112 mm, max. print width: 104 mm, max. roll diameter: 127 mm, print speed: 102 mm/s, USB connectivity, supports EPLII, ZPLII, XML emulations.



Included in the box: Printer, Power Supply Unit & UK Power Cable


Zebra offers a free software package to design and print labels called ZebraDesigner Essentials. Click Here for more info


Manufacturer: Zebra
Availability: 9 in stock
SKU: 909000217
Reference Code: ZD22042-D0EG00EZ
€245.00 incl VAT
decrease increase
Share
banner

The Zebra ZD220 is a reliable and cost-effective direct thermal label printer designed for everyday printing needs. With a 203 dpi (8 dots/mm) resolution, it delivers crisp and clear labels for a variety of applications, including shipping, retail, healthcare, and inventory management. Its compact design and easy-to-use interface make it an excellent choice for businesses looking for a dependable yet affordable printing solution.


Equipped with USB connectivity, the ZD220 seamlessly integrates into existing systems and supports popular printer languages, including EPLII, ZPLII, and XML. It features a maximum media width of 112 mm and a print width of 104 mm, making it suitable for various label sizes. With a print speed of up to 102 mm/s, this printer ensures efficient label production while maintaining high-quality output. The ZD220 comes with a power supply unit and EU/UK power cable, ensuring a hassle-free setup.


Efficient Label Printing

  • Direct thermal technology (no ink or ribbon required)
  • 203 dpi resolution for sharp, clear prints
  • Fast printing speed of up to 102 mm/s

Versatile Media Handling

  • Supports media width up to 112 mm and print width up to 104 mm
  • Maximum roll diameter of 127 mm for extended usage
  • Compatible with EPLII, ZPLII, and XML emulations

User-Friendly & Reliable

  • Simple USB connectivity for easy integration
  • Compact design, ideal for small workspaces
  • Includes power supply unit and EU/UK power cable for quick setup

The Zebra ZD220 is a reliable and cost-effective direct thermal label printer designed for everyday printing needs. With a 203 dpi (8 dots/mm) resolution, it delivers crisp and clear labels for a variety of applications, including shipping, retail, healthcare, and inventory management. Its compact design and easy-to-use interface make it an excellent choice for businesses looking for a dependable yet affordable printing solution.


Equipped with USB connectivity, the ZD220 seamlessly integrates into existing systems and supports popular printer languages, including EPLII, ZPLII, and XML. It features a maximum media width of 112 mm and a print width of 104 mm, making it suitable for various label sizes. With a print speed of up to 102 mm/s, this printer ensures efficient label production while maintaining high-quality output. The ZD220 comes with a power supply unit and EU/UK power cable, ensuring a hassle-free setup.


Efficient Label Printing

  • Direct thermal technology (no ink or ribbon required)
  • 203 dpi resolution for sharp, clear prints
  • Fast printing speed of up to 102 mm/s

Versatile Media Handling

  • Supports media width up to 112 mm and print width up to 104 mm
  • Maximum roll diameter of 127 mm for extended usage
  • Compatible with EPLII, ZPLII, and XML emulations

User-Friendly & Reliable

  • Simple USB connectivity for easy integration
  • Compact design, ideal for small workspaces
  • Includes power supply unit and EU/UK power cable for quick setup
CategoryDetails
Physical CharacteristicsDimensions:
Thermal Transfer: 10.5 in. L x 7.75 in. W x 7.5 in. H (267 mm x 197 mm x 191 mm)
Direct Thermal: 8.6 in. L x 6.9 in. W x 5.9 in. H (220 mm x 176 mm x 151 mm)

Weight:
Thermal Transfer: 3.7 lbs./1.7 kg
Direct Thermal: 2.5 lbs./1.1 kg
Printer SpecificationsResolution: 203 dpi/8 dots per mm
Memory: 128 MB Flash; 128 MB SDRAM
Maximum Print Width: 4.09 in./104 mm
Print Speed: 4 in./102 mm per second
Media Sensors: Movable black mark sensor (limited range from center to left side), Fixed off-center gap sensor
Firmware: ZPL II; EPL 2; XML
Media and Ribbon CharacteristicsMaximum Label Length: 39.0 in./991 mm
Media Width: 1.00 in./25.4 mm to 4.4 in./112 mm
Media Roll Size: 5.00 in./127 mm outer diameter
Core Inner Diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm) using optional adapters
Thickness: 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only)
Media Types: Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, wristbands

Ribbon Specifications:
Outside Diameter: 1.34 in./34 mm (74 m)
Maximum Length: 244 ft. (74 m)
Ratio: 1:1 ribbon to media (74 m)
Width: 1.33 in./33.8 mm - 4.3 in./109.2 mm
Core I.D.: 74 meter ribbon 0.5 in./12.7 mm
Operating CharacteristicsOperating Temperature: 40° to 105° F (4.4° to 41° C)
Storage Temperature: -40° to 140° F (-40° to 60° C)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 95% non-condensing
Electrical: Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified
Fonts/Graphics/SymbologiesBar Code Ratios: 2:1 and 3:1
1D Barcodes: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec

Fonts and Graphics:
16 resident expandable ZPL II bitmap fonts
Two resident scalable ZPL fonts
Five resident expandable EPL2 fonts
Native open-type font support
Unicode compliant for multi-language, on-demand thermal printing
50 MB user available non-volatile memory, 8 MB user available SDRAM
Regulatory ComplianceIEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus, CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM

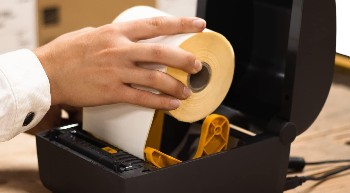

Loading Media and Calibration in Your Printer

*
*
*
*
