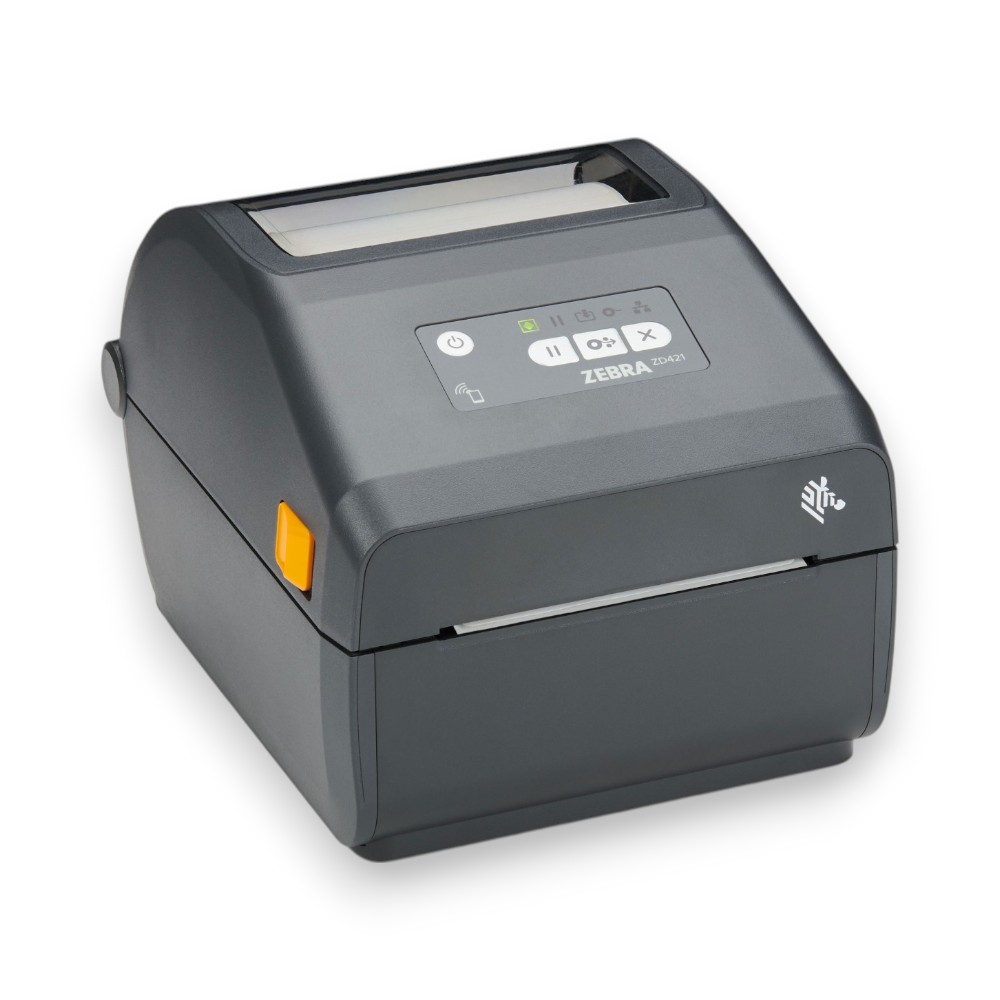

Zebra ZD421 Direct Thermal USB/Ethernet 300dpi Label Printer

Previous productZebra ZD421 Direct Thermal ...

Next productZebra ZD421 Thermal Transfe...

Label printer. Desktop direct thermal printing. Resolution: 12 dots/mm (300 dpi). Max media width: 108 mm, max print width: 108 mm, max roll diameter: 127 mm. Print speed: up to 102 mm/s. Interfaces: USB, USB Host, Bluetooth (BLE), Ethernet. RAM: 256 MB, Flash: 512 MB. Real-time clock, black mark and gap sensors. Colour: Grey. Includes USB cable, power supply unit (EU, UK).

Included in the box: Printer, Power Supply, Power Cable UK, USB Cable & Setup Guide.

Zebra offers a free software package to design and print labels called ZebraDesigner Essentials. Click Here for more info

Manufacturer: Zebra

Availability: 1 in stock

SKU: 20183

Reference Code: ZD4A043-D0EE00EZ

€670.00 incl VAT

Qty: decrease increase

The Zebra ZD421 300dpi Label Printer is a high-resolution, compact desktop solution designed for precision and reliability in label printing. Featuring direct thermal technology, it produces sharp, detailed prints at 300 dpi, making it ideal for applications requiring fine text, barcodes, or graphics. With a maximum media and print width of 108 mm and support for rolls up to 127 mm in diameter, it efficiently handles various labelling tasks across retail, healthcare, logistics, and more.

Connectivity is seamless with built-in USB, USB Host, Bluetooth Low Energy (BLE), and Ethernet, while 256 MB RAM and 512 MB Flash ensure fast processing and memory storage. The ZD421 also includes a real-time clock and both black mark and gap sensors for enhanced accuracy. Finished in grey and supplied with all necessary cables and power accessories, it's ready for integration right out of the box.

High-Resolution Performance

Direct thermal printing at 300 dpi for crisp, detailed output
Supports max media and print width of 108 mm
Print speed up to 102 mm/s for fast, efficient labelling

Connectivity & Integration

USB, USB Host, Bluetooth (BLE), and Ethernet interfaces
Real-time clock for time-sensitive label applications
256 MB RAM and 512 MB Flash for smooth operation

User-Friendly Design

Compact desktop footprint in grey
Black mark and gap sensors for precise media alignment
Includes USB cable, EU and UK power supplies for immediate setup

Overview
Technical Specifications
Contact Us

High-Resolution Performance

Direct thermal printing at 300 dpi for crisp, detailed output
Supports max media and print width of 108 mm
Print speed up to 102 mm/s for fast, efficient labelling

Connectivity & Integration

USB, USB Host, Bluetooth (BLE), and Ethernet interfaces
Real-time clock for time-sensitive label applications
256 MB RAM and 512 MB Flash for smooth operation

User-Friendly Design

Compact desktop footprint in grey
Black mark and gap sensors for precise media alignment
Includes USB cable, EU and UK power supplies for immediate setup

Zebra ZD421 Direct Thermal 300dpi Specifications
Print Method	Direct Thermal
Resolution	300 dpi / 12 dots per mm
Operating System	Link-OS
User Interface	5 status icons, 3-button control
Programming Languages	ZPL II, EPL 2, XML, ZBI, PDF Direct
Connectivity	USB 2.0, USB Host, BLE (for mobile setup app)
Memory	512 MB Flash, 256 MB SDRAM
Max Print Width	106 mm / 4.16 in.
Max Print Speed	102 mm/s / 4 in. per second
Media Width	15 mm to 108 mm / 0.585 in. to 4.25 in.
Label Length	6.35 mm to 991 mm / 0.25 in. to 39.0 in.
Media Sensors	Full width, moveable reflective/black mark sensor, multi-position transmissive/gap sensor
Media Types	Roll-fed, fan-fold, die cut, continuous, black mark, tag stock, receipt paper, wristbands
Media Roll Size	Max OD: 127 mm / 5.00 in. Core: 12.7 mm / 0.5 in. and 25.4 mm / 1.0 in. standard (others with adapters)
Media Thickness	0.08 mm to 0.19 mm / 0.003 in. to 0.0075 in.
Real Time Clock (RTC)	Included
Construction	Dual-wall frame, OpenACCESS™ design
Dimensions (W x D x H)	177.5 mm x 220.8 mm x 150.7 mm 6.98 in. x 8.69 in. x 5.93 in.
Weight	1.35 kg / 2.98 lbs.
Operating Temperature	4.4°C to 41°C / 40°F to 105°F
Storage Temperature	-40°C to 60°C / -40°F to 140°F
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 95% non-condensing
Electrical	Auto-detect 100-240VAC, 50-60Hz, ENERGY STAR® certified, Level VI
Compliance	RoHS, REACH SVHC, CE, FCC, ICES, VCCI, KCC, BIS, NOM, and more
Environmental Compliance	RoHS Directive 2011/65/EU; Amendment 2015/863, REACH SVHC 1907/2006
Software Included	ZebraDesigner Essentials, Zebra Setup Utilities
