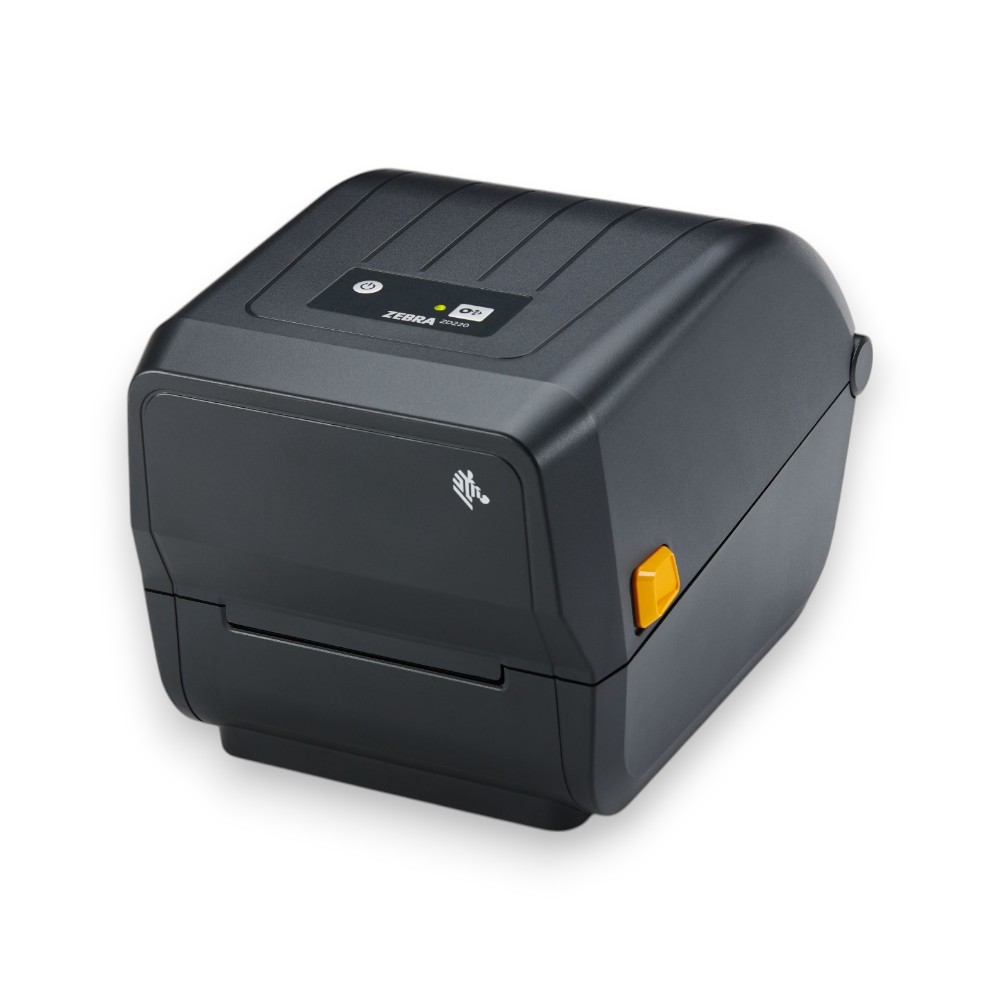

The Zebra ZD230 Thermal Transfer Label Printer is designed for small to medium businesses that require dependable and efficient label printing. With a print resolution of 203 dpi and support for labels up to 112 mm wide, it handles everyday labeling tasks with ease—whether for shipping, inventory, or retail needs. A fast print speed of up to 152 mm per second ensures productivity remains high in busy environments.

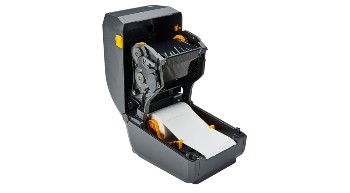

Connectivity is flexible with both USB and Ethernet ports, while support for EPLII, ZPLII, and XML printer languages ensures compatibility with existing systems and software. The compact size makes it ideal for limited workspace setups, and media changes are quick thanks to the simple clamshell design. Included are all essential accessories for immediate use, including power cables (EU and UK) and a USB cable.
Powerful Printing Performance
Connectivity & Compatibility
Design & Usability
The Zebra ZD230 Thermal Transfer Label Printer is designed for small to medium businesses that require dependable and efficient label printing. With a print resolution of 203 dpi and support for labels up to 112 mm wide, it handles everyday labeling tasks with ease—whether for shipping, inventory, or retail needs. A fast print speed of up to 152 mm per second ensures productivity remains high in busy environments.
Connectivity is flexible with both USB and Ethernet ports, while support for EPLII, ZPLII, and XML printer languages ensures compatibility with existing systems and software. The compact size makes it ideal for limited workspace setups, and media changes are quick thanks to the simple clamshell design. Included are all essential accessories for immediate use, including power cables (EU and UK) and a USB cable.
Powerful Printing Performance
Connectivity & Compatibility
Design & Usability
Category | Details |
---|---|
Standard Features | Thermal Transfer or Direct Thermal print methods ZPL and EPL programming languages Single LED status indicator Single button (feed/pause) USB connectivity OpenACCESS™ for easy media loading Dual-wall frame construction ENERGY STAR qualified ZebraDesigner Essentials (free tool at zebra.com) |

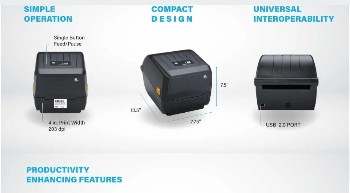

Physical Characteristics | Thermal Transfer: 10.5 x 7.75 x 7.5 in / 267 x 197 x 191 mm Weight: 3.7 lbs / 1.7 kg (TT), 2.5 lbs / 1.1 kg (DT) |
Printer Specifications | Resolution: 203 dpi / 8 dots per mm Memory: 128 MB Flash, 128 MB SDRAM Max Print Width: 4.09 in / 104 mm Print Speed: 4 in / 102 mm per sec Media Sensors: Movable black mark sensor, fixed off-center gap sensor Firmware: ZPL II, EPL 2, XML |
Media & Ribbon | Max Label Length: 39 in / 991 mm Media Width: 1.00 - 4.4 in / 25.4 - 112 mm Roll Size: 5 in / 127 mm OD Core Size: 0.5 in, 1 in (std); 1.5 in (opt.) Thickness: 0.003 in - 0.0075 in Types: Roll-fed, fan-fold, die-cut, continuous, tag stock, wristbands Ribbon OD: 1.34 in / 34 mm Ribbon Length: 244 ft / 74 m Ribbon Width: 1.33 - 4.3 in / 33.8 - 109.2 mm Core I.D.: 0.5 in / 12.7 mm |
Operating Characteristics | Operating Temp: 40°F to 105°F / 4.4°C to 41°C Storage Temp: -40°F to 140°F / -40°C to 60°C Operating Humidity: 10% - 90% non-condensing Storage Humidity: 5% - 95% non-condensing Electrical: 100-240VAC, 50-60Hz, ENERGY STAR, auto-detect (PFC compliant) |
Fonts, Graphics & Barcodes | Bar Code Ratios: 2:1 and 3:1 1D Barcodes: Code 11, 39, 93, 128, ISBT-128, UPC-A/E, EAN-8/13, Plessey, Postnet, 2-of-5 (Standard, Industrial, Interleaved), Logmars, MSI, Codabar, Planet Code 2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec Fonts: 16 ZPL bitmap, 2 scalable ZPL fonts, 5 EPL2 expandable fonts Native OpenType font support, Unicode compliant User Memory: 50 MB Flash, 8 MB SDRAM |
