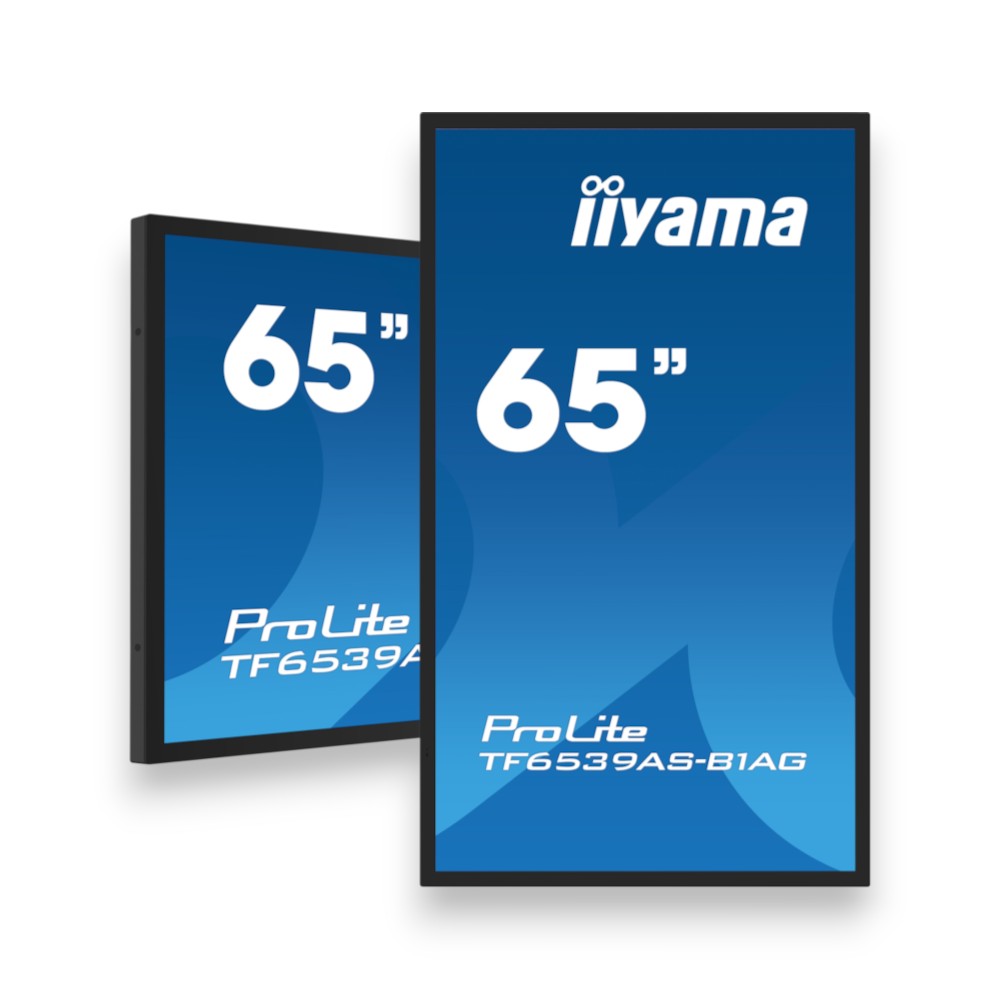

Iiyama 65 inch Open Frame PCAP Touch Interactive Display

iiyama ProLite TF6539AS-B1AG 65" all-in-one open frame interactive display, IPS LED panel, 4K UHD 3840 x 2160 resolution at 60Hz, bonded PCAP 40-point touch, anti-glare coated edge-to-edge glass, 500 cd/m² panel brightness, 435 cd/m² brightness with touch, 1200:1 contrast ratio, 8ms response time, HDMI, DisplayPort, RS-232C, RJ45 LAN, USB, Android 11 OS, iiSignage², EShare, FailOver, VESA mounting support.


Included in the box:

43 inch Interactive Display, Power Cable (1.8m), USB Cable (1.8m), HDMI Cable (1.8m), Remote Control (Batteries included), Quick Start Guide & Cable Cover.


Manufacturer: Iiyama
Availability: Out of stock
SKU: 20710
Reference Code: TF6539AS-B1AG
€3700.00 incl VAT
decrease increase
Share
banner

The iiyama ProLite TF6539AS-B1AG is a 65" all-in-one open frame interactive display designed for integrated commercial touch applications. It features an IPS LED panel with 3840 x 2160 4K UHD resolution at 60Hz, bonded projected capacitive 40-point touch technology, anti-glare coated edge-to-edge glass, 500 cd/m² panel brightness, 435 cd/m² brightness with touch, 1200:1 contrast ratio and 178°/178° viewing angles.


This model includes Android 11 OS with iiSignage², EShare and FailOver software, together with HDMI, DisplayPort, RS-232C, RJ45 LAN, USB and audio connectivity. It also includes 2 x 10W speakers, HDCP 2.2 support, IP65 front protection, 7H glass hardness, palm rejection and through-glass touch support up to 6mm, making it suitable for kiosks, interactive signage, self-service points, retail displays and information terminals.


iiSignage²

iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.


LEARN MORE

Signal FailOver

FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

Touch Through-Glass

This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

Retail Installations

The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.

Huddle Spaces

Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.

The iiyama ProLite TF6539AS-B1AG is a 65" all-in-one open frame interactive display designed for integrated commercial touch applications. It features an IPS LED panel with 3840 x 2160 4K UHD resolution at 60Hz, bonded projected capacitive 40-point touch technology, anti-glare coated edge-to-edge glass, 500 cd/m² panel brightness, 435 cd/m² brightness with touch, 1200:1 contrast ratio and 178°/178° viewing angles.


This model includes Android 11 OS with iiSignage², EShare and FailOver software, together with HDMI, DisplayPort, RS-232C, RJ45 LAN, USB and audio connectivity. It also includes 2 x 10W speakers, HDCP 2.2 support, IP65 front protection, 7H glass hardness, palm rejection and through-glass touch support up to 6mm, making it suitable for kiosks, interactive signage, self-service points, retail displays and information terminals.


iiSignage²

iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.


LEARN MORE

Signal FailOver

FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

Touch Through-Glass

This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

Retail Installations

The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.

Huddle Spaces

Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.

CategoryDetails
Model / Part NumberTF6539AS-B1AG
Product Nameiiyama ProLite TF6539AS-B1AG 65" 4K Open Frame PCAP Interactive Display
Product TypeAll-in-One Open Frame Interactive Touch Display
Screen Size64.5" / 163.9 cm
Panel TechnologyIPS LED with Anti-Glare Coated Glass
Native Resolution3840 × 2160 @ 60 Hz (4K UHD)
Aspect Ratio16:9
Panel Brightness500 cd/m²; 435 cd/m² with touch panel
Contrast Ratio1200:1
Response Time8 ms (GTG)
Viewing Angles178° horizontal / 178° vertical
Colour Support1.07 billion colours (8-bit + FRC, 72% NTSC)
Touch TechnologyBonded Projected Capacitive (PCAP)
Touch Points40-point multi-touch
Touch Accuracy±2.5 mm
Touch MethodFinger, stylus and latex glove
Touch InterfaceUSB
Touch Through GlassSupported through glass up to 6 mm thick
Palm RejectionYes
Glass Thickness4 mm
Glass Hardness7H
Front ProtectionIP65
Operating SystemAndroid 11
ProcessorQuad-Core Cortex-A73 + Quad-Core Cortex-A53
GraphicsMali-G52 MP8
Memory / Storage4 GB RAM / 32 GB Storage
Integrated SoftwareiiSignage², EShare and FailOver
Video Inputs2 × HDMI 2.0 and 1 × DisplayPort 1.2
USB Ports2 × USB 2.0 Type-A and 1 × USB Type-B upstream for touch
Network ConnectivityRJ45 LAN
Control InterfaceRS-232C and RJ45 LAN
Audio Output3.5 mm Mini Jack
Built-in Speakers2 × 10 W
HDCPHDCP 2.2
InstallationLandscape, Portrait and Face-Up
Continuous Operation24/7
DesignOpen Frame, Edge-to-Edge Glass
ColourBlack, Matte
Dimensions (W × H × D)1495 × 870 × 66 mm
Weight53.7 kg
Operating Temperature0°C to 40°C
Use CasesInteractive kiosks, self-service applications, retail installations, information points, interactive digital signage and embedded commercial touch applications
*
*
*
*
