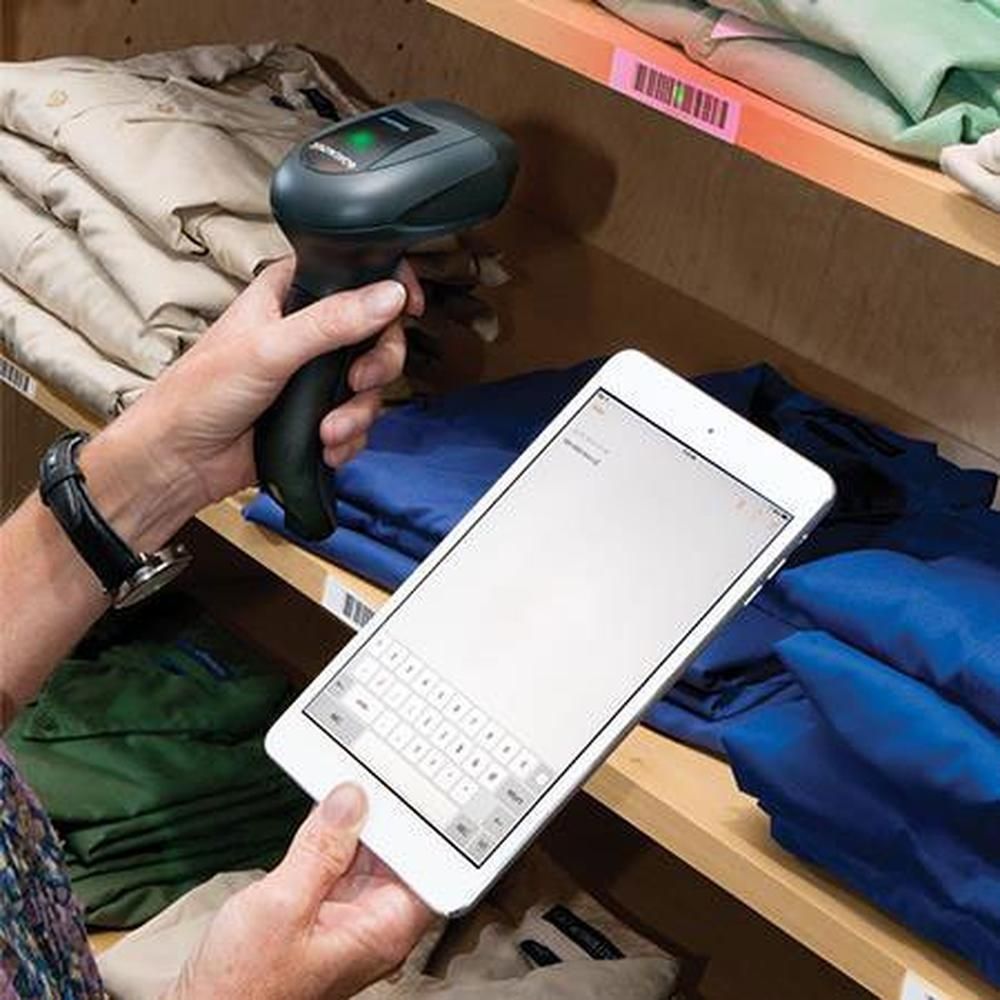

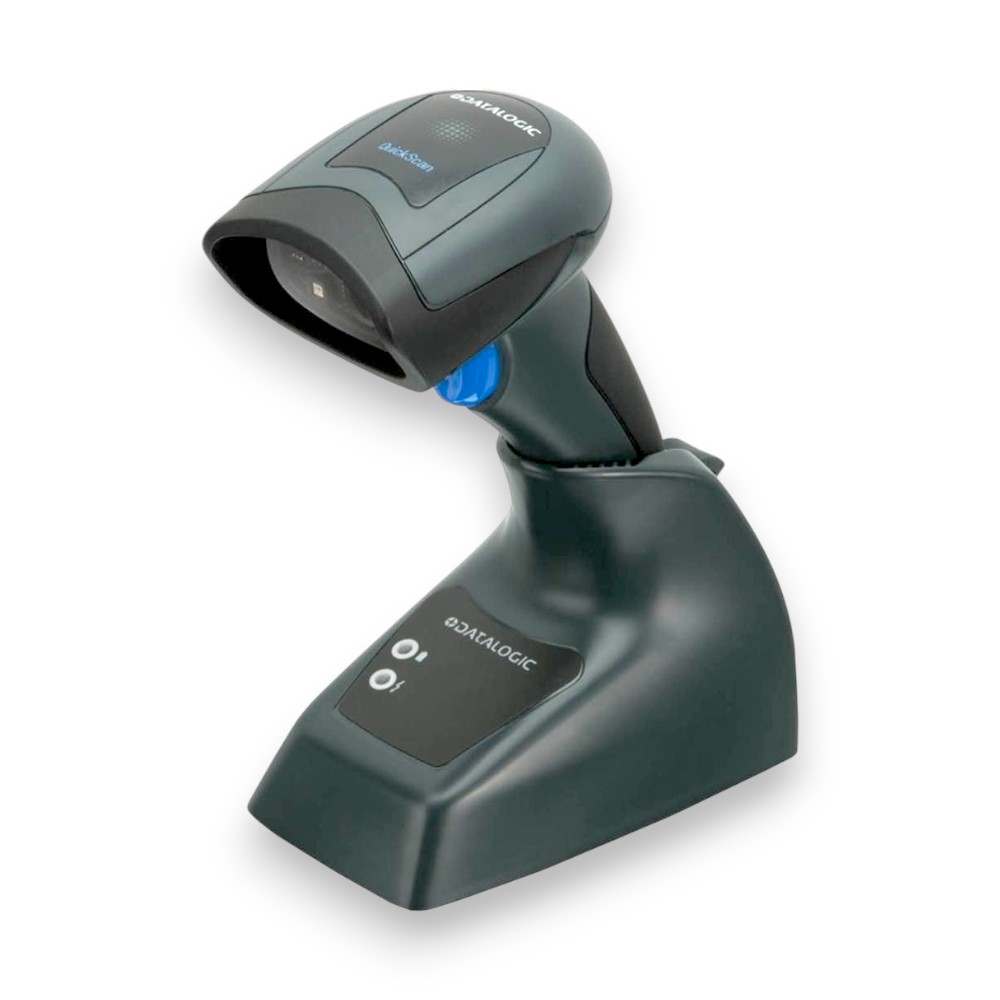

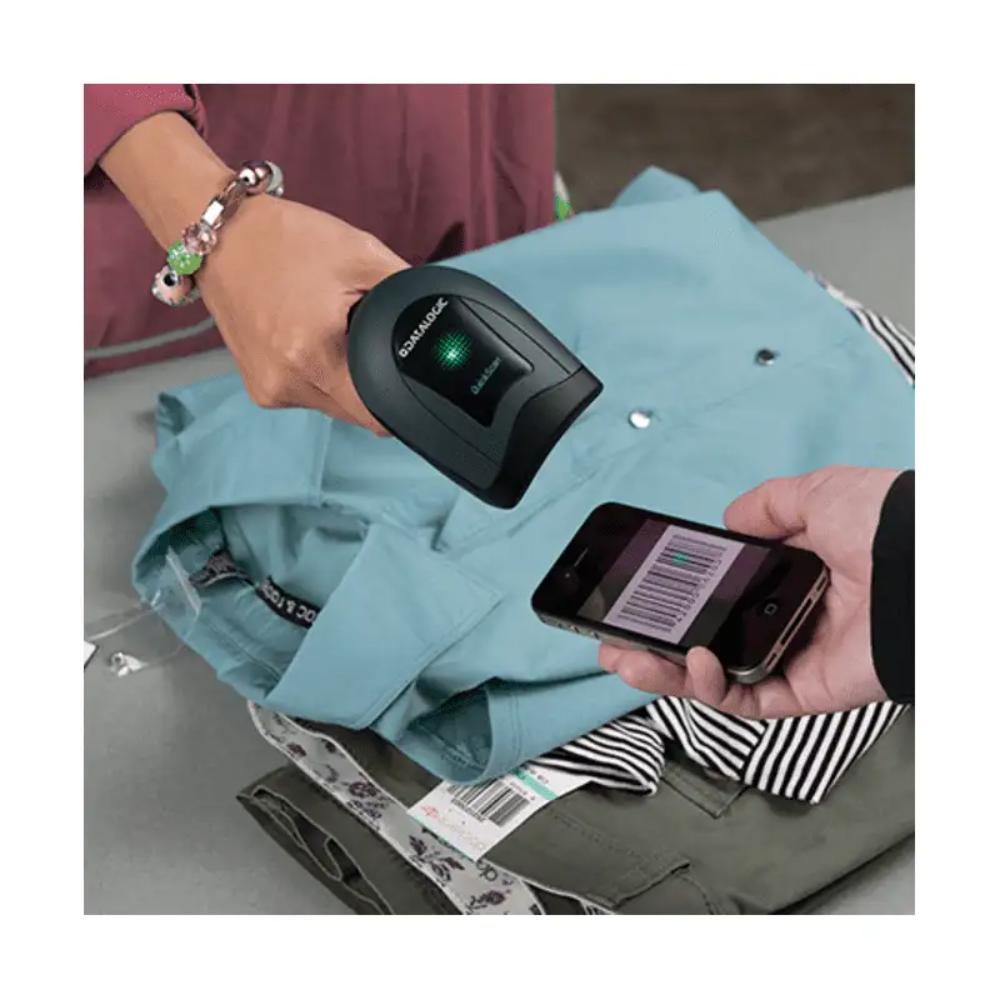

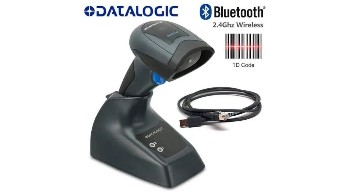

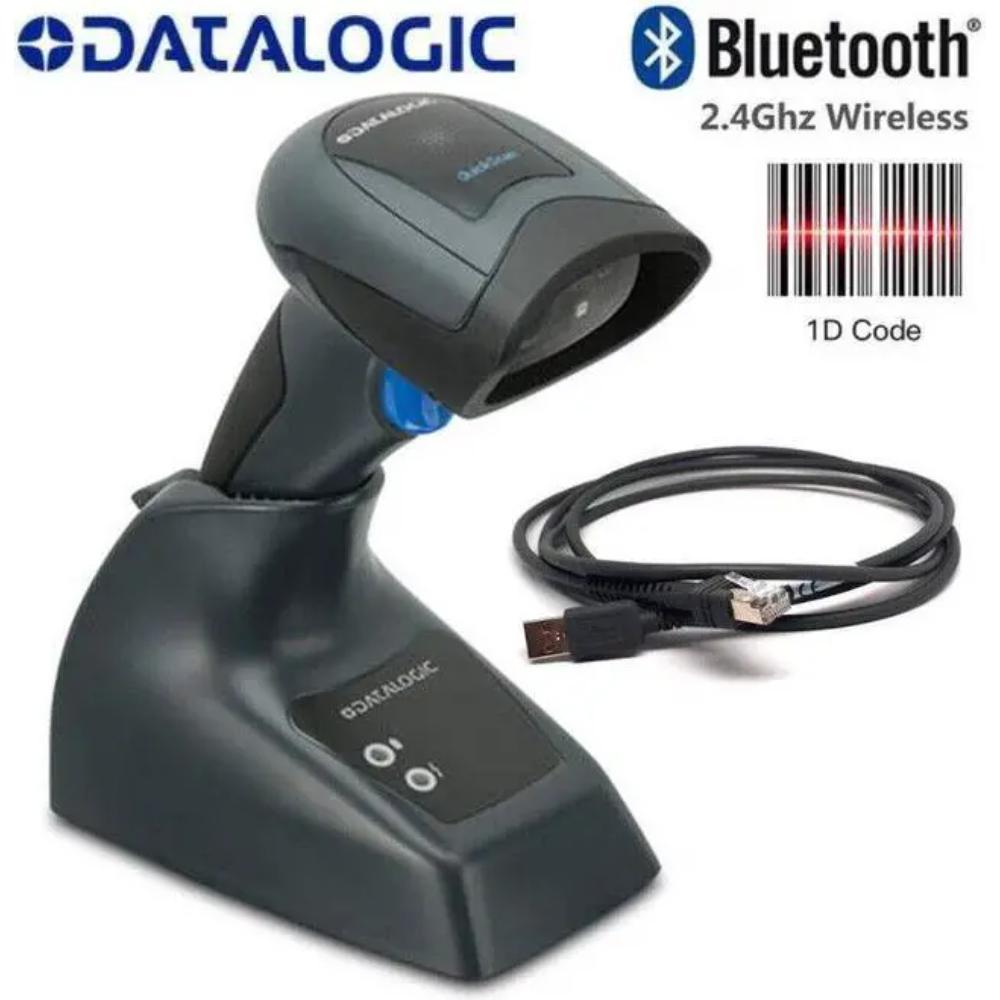

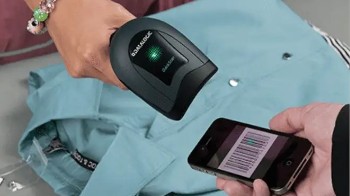

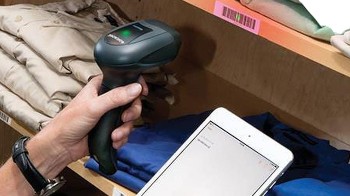

The Datalogic QuickScan I QM2131 Kit is a high-performance wireless barcode scanning solution designed for efficiency and flexibility. It features a linear imager with an extra-wide field of view and extended scan line, making it ideal for reading long 1D barcodes commonly used in logistics, retail, and industrial applications. The scanner operates on a 433 MHz STAR™ 2.0 narrowband wireless system, providing reliable, interference-free communication with up to 25 meters range.
This scanner kit includes a base station, USB cable, and a tool-free removable lithium-ion battery capable of delivering up to 30,000 scans per full charge. It supports USB, Keyboard Wedge, and RS-232 interfaces, offering easy integration into a variety of systems. User feedback is provided through Datalogic’s Green Spot technology, audio beeper, and visual LED indicators, ensuring accurate and efficient operation in fast-paced environments.
Scanning Performance
The Datalogic QuickScan I QM2131 Kit is a high-performance wireless barcode scanning solution designed for efficiency and flexibility. It features a linear imager with an extra-wide field of view and extended scan line, making it ideal for reading long 1D barcodes commonly used in logistics, retail, and industrial applications. The scanner operates on a 433 MHz STAR™ 2.0 narrowband wireless system, providing reliable, interference-free communication with up to 25 meters range.
This scanner kit includes a base station, USB cable, and a tool-free removable lithium-ion battery capable of delivering up to 30,000 scans per full charge. It supports USB, Keyboard Wedge, and RS-232 interfaces, offering easy integration into a variety of systems. User feedback is provided through Datalogic’s Green Spot technology, audio beeper, and visual LED indicators, ensuring accurate and efficient operation in fast-paced environments.
Scanning Performance
Category | Details |
---|---|
Model / Kit | QM2131-BK-433K1 (Wireless 1D Kit, includes Scanner, Base Station & USB Cable) |
Scan Technology | Linear Imager (1D) |
Connectivity | Wireless (STAR 2.0 Cordless System, 433 MHz) |
Wireless Range | Up to 25 m / 82 ft |
Field of View | Extra-wide scan angle, extra-long scan line |
User Feedback | Green Spot good-read feedback |
Battery | Li-Ion, user-replaceable; alternative USB/micro-USB charging |
Scanning Performance | Max read rate: ≈400 reads/s |
Durability | IP42 protection |
Operational Temperature | 0 °C to 50 °C |
Storage Temperature | –40 °C to 70 °C |
Dimensions (Scanner) | 163 × 41 × 91 mm |
Weight | ≈ 190–200 g (scanner only) |
Reading Angles | Pitch ±65°, Skew ±60°, Yaw ±70° |
