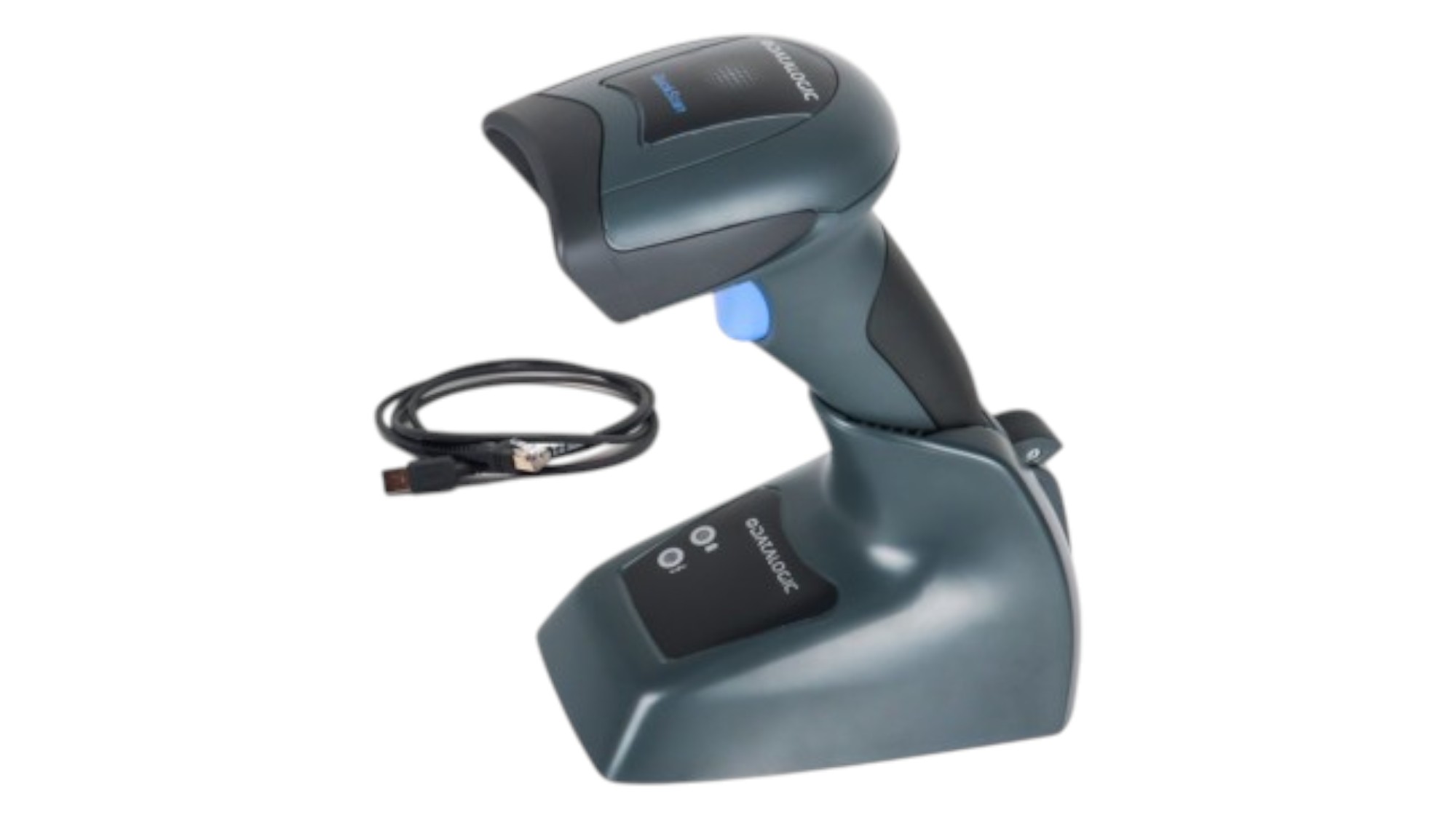

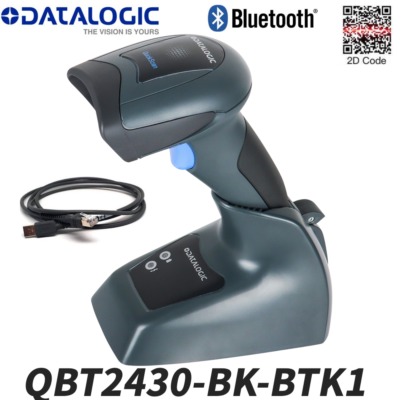

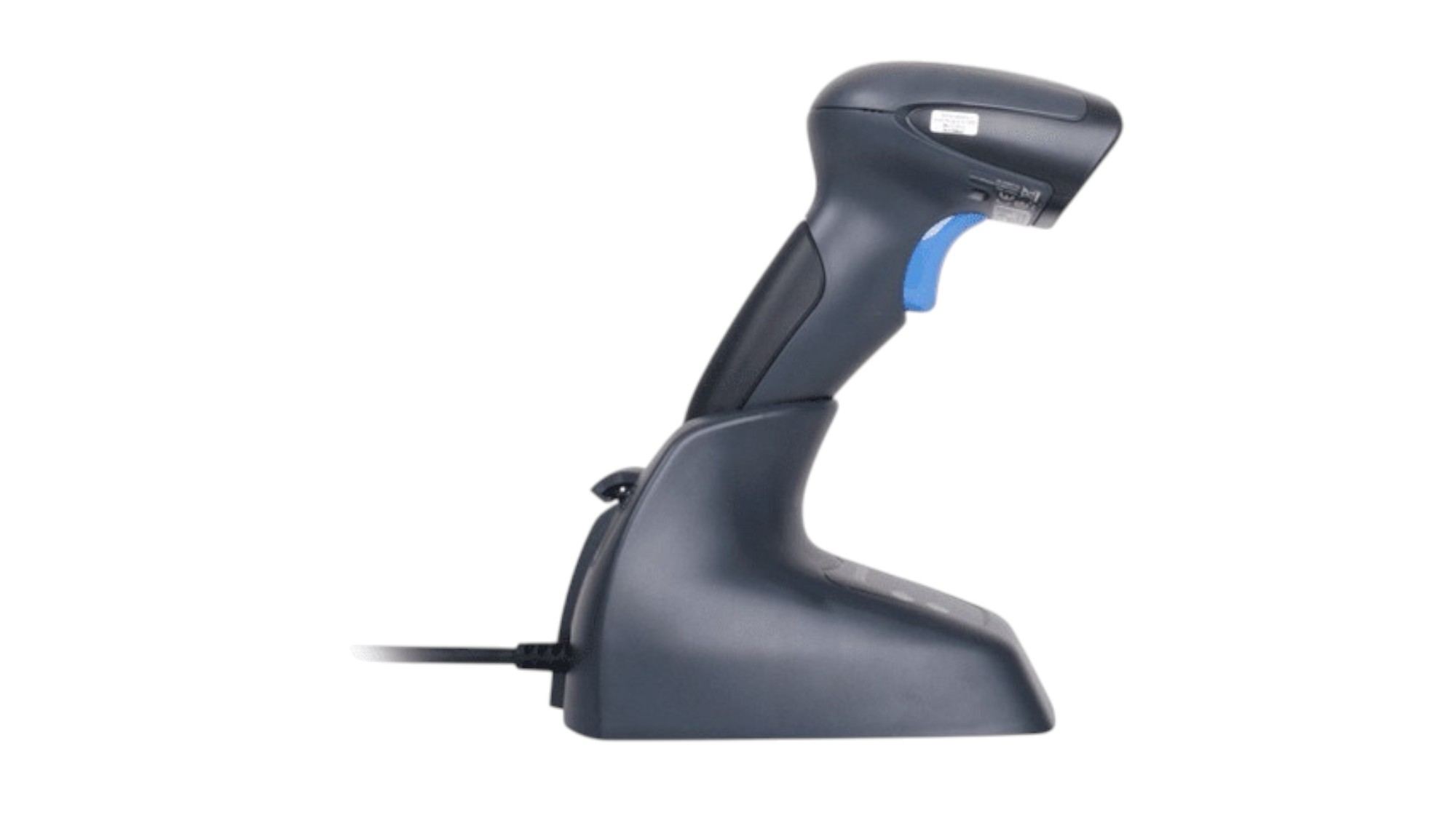

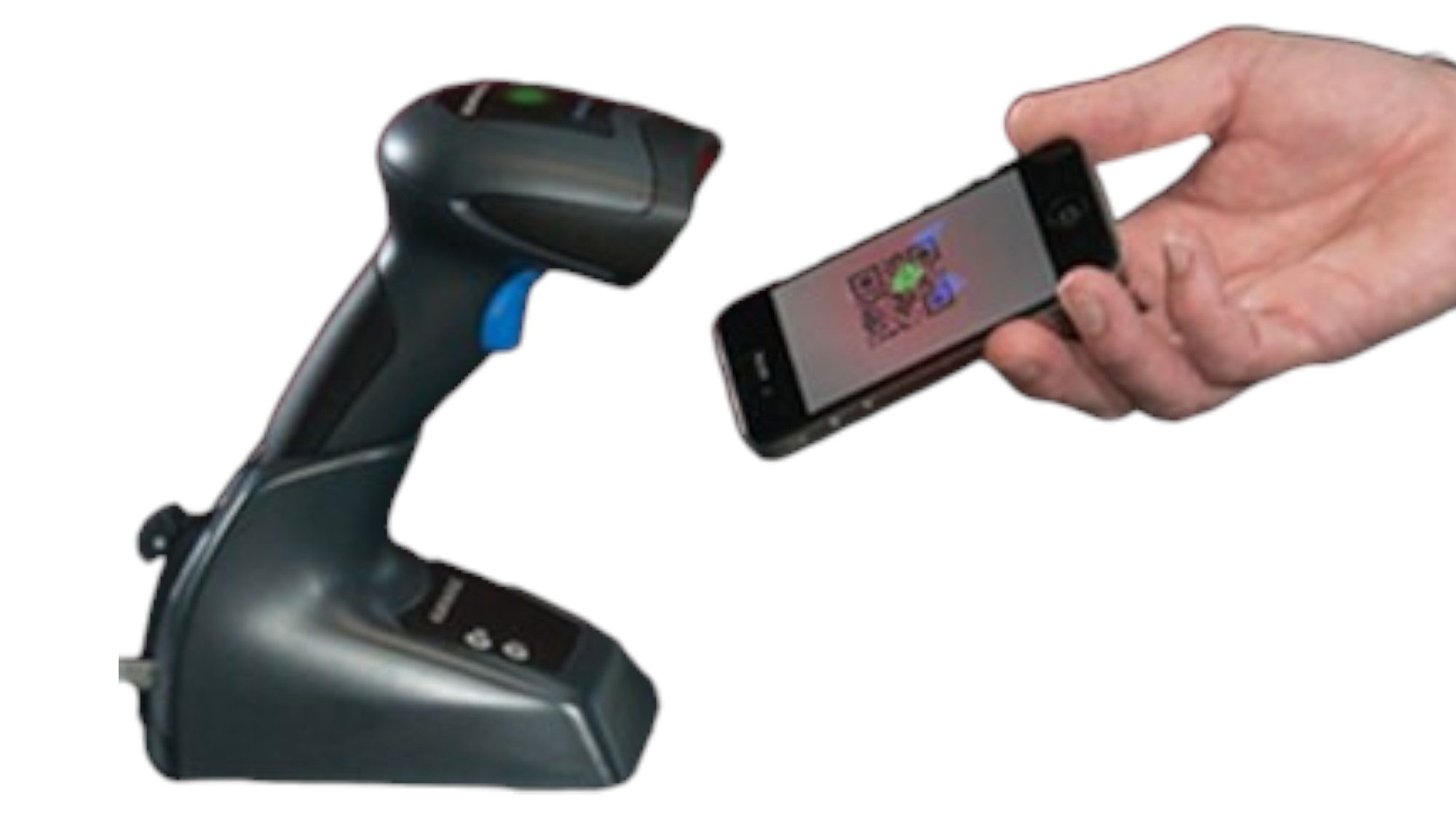

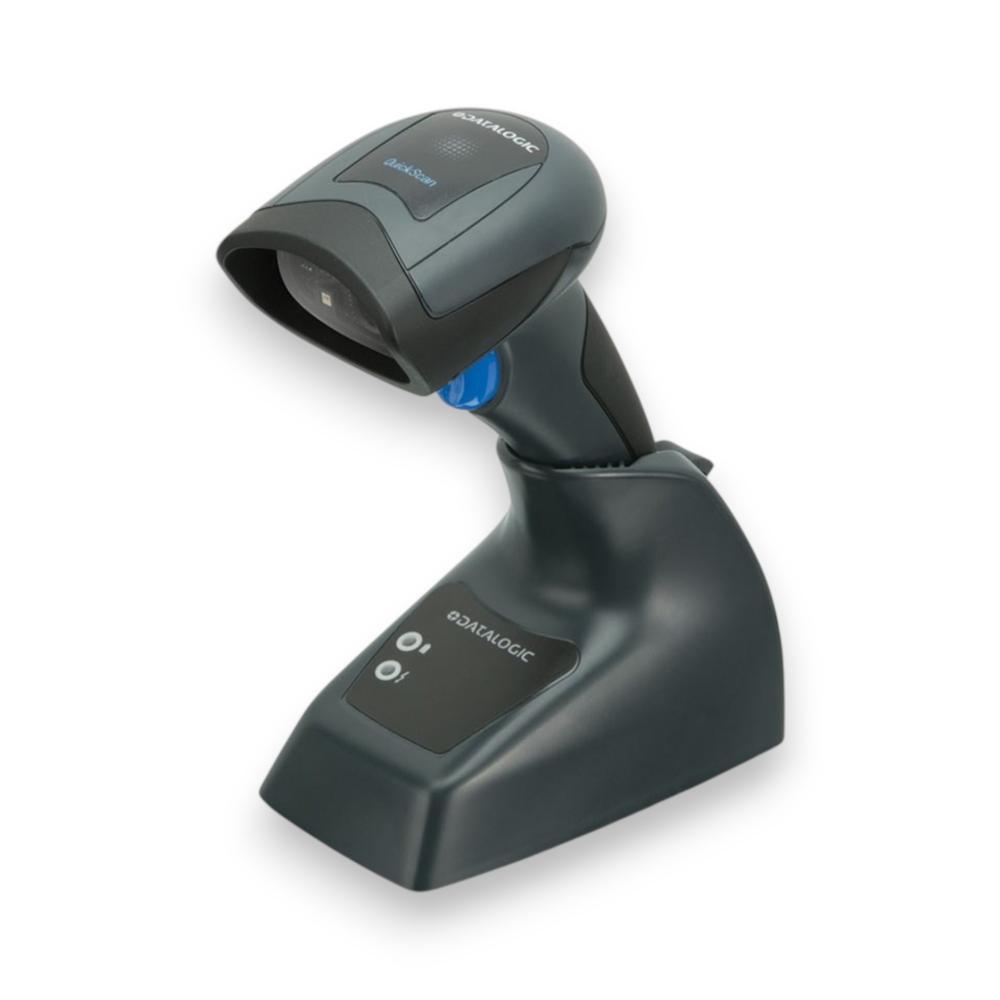

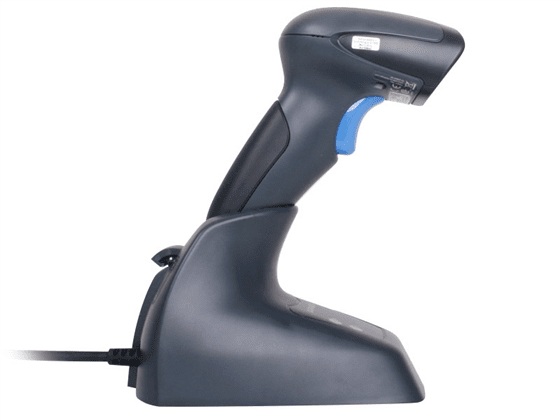

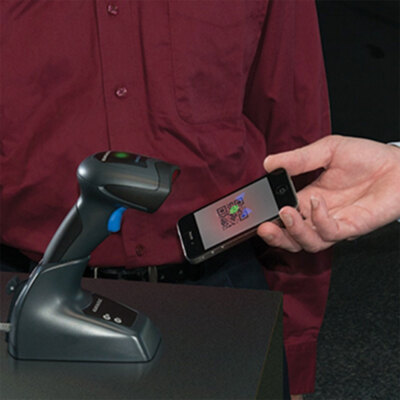

The Datalogic QuickScan QBT2430 is a wireless 2D area imager designed for point-of-sale (POS), retail, and light industrial environments. It features a Bluetooth v3.0 connection capable of transmitting data to its base station or directly to commercial and embedded Bluetooth devices, including iOS and Android tablets via HID profile. The kit includes the scanner, USB base station, and USB cable, offering plug-and-play functionality for fast setup.
The QBT2430 uses a specially developed dark red illumination and dual blue LED aimer to reduce eye strain during prolonged scanning, making it more comfortable for operators over long shifts. With a rechargeable lithium-ion battery, the scanner can perform up to 30,000 scans per full charge, and its IP42 rating provides protection against dust and light water splashes. The compact, 200 g design ensures lightweight handling, while full 2D scanning capabilities make it suitable for retail barcodes, loyalty cards, QR codes, and mobile coupons.
Scanning & Performance
The Datalogic QuickScan QBT2430 is a wireless 2D area imager designed for point-of-sale (POS), retail, and light industrial environments. It features a Bluetooth v3.0 connection capable of transmitting data to its base station or directly to commercial and embedded Bluetooth devices, including iOS and Android tablets via HID profile. The kit includes the scanner, USB base station, and USB cable, offering plug-and-play functionality for fast setup.
The QBT2430 uses a specially developed dark red illumination and dual blue LED aimer to reduce eye strain during prolonged scanning, making it more comfortable for operators over long shifts. With a rechargeable lithium-ion battery, the scanner can perform up to 30,000 scans per full charge, and its IP42 rating provides protection against dust and light water splashes. The compact, 200 g design ensures lightweight handling, while full 2D scanning capabilities make it suitable for retail barcodes, loyalty cards, QR codes, and mobile coupons.
Scanning & Performance
Category | Details |
---|---|
Product Name | QuickScan I QBT2430 Handheld Barcode Scanner Kit |
Product Model | QBT2430 |
Product Line | QuickScan I |
Manufacturer | Datalogic S.p.A |
Manufacturer Part Number | QBT2430-BK-BTK1 |
Product Type | Barcode Scanner Kit |
Brand | Datalogic |
Host Interface | USB |
Connectivity Technology | Wireless |
Bluetooth | Yes |
Scanning Capability | 1D & 2D |
Scan Pattern | Omni-directional |
Image Sensor Type | Imager |
Maximum Scan Resolution | 0.10 mm |
Scanning Distance | Up to 350 mm |
Depth of Field | 0.5–15 cm @ 5mil (Code 39) 0.5–35 cm @ 13mil (EAN/UPCA) 2–15 cm @ 6.6mil (PDF417) 2–16 cm @ 10mil (Data Matrix) |
Reading Angles | Pitch: 65°, Skew: 60°, Roll: 360° |
Motion Tolerance | 635 mm/s |
Maximum Ambient Light | 100,000 lux |
Minimum Print Contrast | 25% |
Maximum Element Resolution | Code 39: 0.13 mm DataMatrix: 0.25 mm PDF417: 0.17 mm |
Barcode Symbologies Supported | 1D / Linear Codes: All standard 1D including GS1 DataBar™ 2D Codes: Aztec, Data Matrix, MaxiCode, QR, Micro QR, Han Xin Postal Codes: Australian Post, British Post, Canadian Post, China Post, IMB, Japanese Post, KIX, Korea Post, Planet, Postnet, Royal Mail (RM4SCC) Stacked Codes: EAN/JAN Composites, GS1 DataBar Composites, Expanded Stacked, Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites |
Drop Specification | Withstands drops from 1.5 m (5.0 ft) onto concrete |
Ingress Protection Rating | IP42 |
Certifications & Standards | IP42, RoHS, China RoHS |
Applications | Industrial, Retail |
Power Source | Battery |
Input Voltage | 14 V DC |
Battery Chemistry | Lithium Ion (Li-Ion) |
Battery Rechargeable | Yes |
Max Scans per Full Charge | 30,000 |
Weight | 200 g |
Form Factor | Handheld |
Dimensions (H × W × D) | 163 × 41 × 91 mm |
Product Color | Black |
Color Family | Black |
Package Contents | QuickScan I QBT2430 Handheld Barcode Scanner Base Station USB Cable |
Additional Information | USB Cable separate |
Country of Origin | Vietnam |
Environmentally Friendly | Yes |
