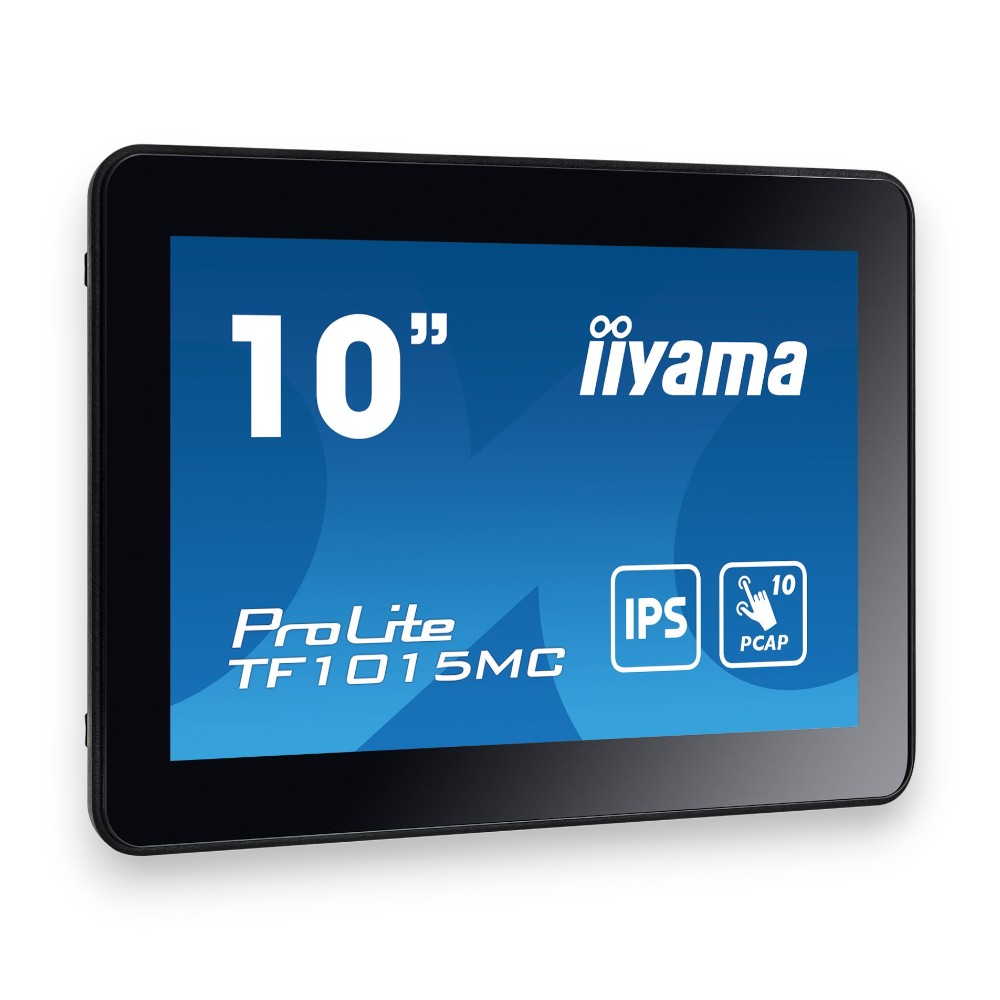

IIyama TF1015MC-B3 10.1 Inch PCAP Open Frame Touch Monitor

IIyama TF1015MC-B3 10.1" PCAP Open Frame Touch Monitor, Projected Capacitive (10-point multi-touch), 1280x800 resolution, IPS panel, 500cd brightness, 800:1 contrast, VESA mount (100x100 mm), IP65 (front), USB, HDMI, DisplayPort, VGA, and Ethernet connectivity. Includes USB, HDMI, and DisplayPort cables, power supply unit, and power cable.


Manufacturer: Iiyama
Availability: 1 in stock
SKU: 20412
Reference Code: TF1015MC-B3
€427.00 incl VAT
decrease increase
Share
banner

The IIyama TF1015MC-B3 10.1" Open Frame Touch Monitor is designed for seamless integration into kiosk systems, industrial environments, and interactive digital signage applications. Equipped with Projected Capacitive (PCAP) touch technology, this monitor ensures precise and smooth 10-point multi-touch functionality, even when used with gloves or a stylus. The edge-to-edge glass overlay provides enhanced durability and scratch resistance, while the IPS panel technology delivers vibrant colors and wide viewing angles (178°/178°) for optimal user experience.


Built to withstand demanding environments, the TF1015MC-B3 features an IP65-rated front panel, protecting against dust and water ingress. Its flexible mounting options, including VESA compatibility (100x100 mm) and optional external brackets, allow for landscape, portrait, or face-up installation, making it ideal for interactive kiosks, control panels, and self-service terminals. The monitor comes with a comprehensive set of connectivity options, including USB, HDMI, DisplayPort, VGA, Ethernet, and audio input, ensuring compatibility with a wide range of systems.


Display and Touch Technology

  • 10.1" Open Frame Monitor, 16:10 aspect ratio
  • Projected Capacitive (PCAP) touch technology with 10-point multi-touch support
  • IPS panel for accurate color reproduction and wide viewing angles (178°/178°)
  • Resolution: 1280 x 800 pixels
  • Brightness: 500 cd/m²
  • Contrast ratio: 800:1
  • Response time: 29 ms

Connectivity and Compatibility

  • USB, HDMI, DisplayPort, VGA, Ethernet, and audio input
  • VESA mount (100x100 mm)
  • IP65-rated front panel (dust and water-resistant)
  • Compatible with optional external mounting brackets (OMK2-1)
  • Includes: USB, HDMI, DisplayPort cables, power supply unit, power cable, and Quick Start Guide

Applications and Usability

  • Ideal for kiosks, self-service terminals, industrial control rooms, and digital signage
  • Flexible installation: landscape, portrait, and face-up orientation
  • Scratch-resistant edge-to-edge glass overlay
  • Seamless integration with foam seal finish for added protection

The IIyama TF1015MC-B3 10.1" Open Frame Touch Monitor is designed for seamless integration into kiosk systems, industrial environments, and interactive digital signage applications. Equipped with Projected Capacitive (PCAP) touch technology, this monitor ensures precise and smooth 10-point multi-touch functionality, even when used with gloves or a stylus. The edge-to-edge glass overlay provides enhanced durability and scratch resistance, while the IPS panel technology delivers vibrant colors and wide viewing angles (178°/178°) for optimal user experience.


Built to withstand demanding environments, the TF1015MC-B3 features an IP65-rated front panel, protecting against dust and water ingress. Its flexible mounting options, including VESA compatibility (100x100 mm) and optional external brackets, allow for landscape, portrait, or face-up installation, making it ideal for interactive kiosks, control panels, and self-service terminals. The monitor comes with a comprehensive set of connectivity options, including USB, HDMI, DisplayPort, VGA, Ethernet, and audio input, ensuring compatibility with a wide range of systems.


Display and Touch Technology

  • 10.1" Open Frame Monitor, 16:10 aspect ratio
  • Projected Capacitive (PCAP) touch technology with 10-point multi-touch support
  • IPS panel for accurate color reproduction and wide viewing angles (178°/178°)
  • Resolution: 1280 x 800 pixels
  • Brightness: 500 cd/m²
  • Contrast ratio: 800:1
  • Response time: 29 ms

Connectivity and Compatibility

  • USB, HDMI, DisplayPort, VGA, Ethernet, and audio input
  • VESA mount (100x100 mm)
  • IP65-rated front panel (dust and water-resistant)
  • Compatible with optional external mounting brackets (OMK2-1)
  • Includes: USB, HDMI, DisplayPort cables, power supply unit, power cable, and Quick Start Guide

Applications and Usability

  • Ideal for kiosks, self-service terminals, industrial control rooms, and digital signage
  • Flexible installation: landscape, portrait, and face-up orientation
  • Scratch-resistant edge-to-edge glass overlay
  • Seamless integration with foam seal finish for added protection
DISPLAY CHARACTERISTICS
DesignOpen Frame
Diagonal10.1", 25.7cm
PanelIPS
Native resolution1280 x 800 (1 megapixel)
Aspect ratio16:10
Panel brightness500 cd/m²
Brightness425 cd/m² with touch
Light transmittance85%
Static contrast800:1
Response time (BTB)29ms
Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support16.7mln
Horizontal Sync30 - 49.7kHz
Viewable area W x H216.96 x 135.6mm, 8.5 x 5.3"
Pixel pitch0.1695mm
Bezel colour and finishblack
TOUCH
Touch technologyprojective capacitive
Touch points10 (HID, only with supported OS)
Touch methodstylus, finger, glove (latex)
Touch interfaceUSB
Supported operating systemsWindows and Linux
Through-Glass6mm
Palm rejectionyes

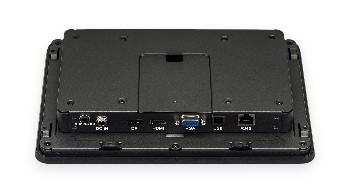

INTERFACES / CONNECTORS / CONTROLS
Analog signal inputVGA x1
Digital signal inputHDMI x1, DisplayPort x1
Monitor control inputRJ45 (LAN) x1
Audio outputMini jack x1
HDCPyes
USB portsx1
FEATURES
Extraanti-fingerprint coating, touch through-glass
Glass thickness3.3mm
Glass hardness7H
60950 Ball drop testyes
Water and dust protectionIP65 (front)
Water tight sealyes
OSD key lockyes
GENERAL
OSD languagesEN, DE, FR, ES, IT, CN, JP
Control buttonsMenu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controlsPicture, advanced, OSD, option
Plug & PlayDDC2B
MECHANICAL
Orientationlandscape, portrait, face-up
VESA mounting100 x 100mm
Operation temperature range0°C - 40°C
Storage temperature range- 20°C - 60°C
MTBF50000 hours
ACCESSORIES INCLUDED
Cablespower, USB, HDMI, DP
Guidesquick start guide, safety guide
OtherAC adapter, external control pad, cable cover, remote control
POWER MANAGEMENT
Power supply unitexternal
Power supplyDC 12 V
Power usage6W typical, 1.5W standby, 0.3W off mode
SUSTAINABILITY
RegulationsCE, EAC, RoHS, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency classC
REACH SVHCabove 0.1%: Lead
DIMENSIONS / WEIGHT
Product dimensions W x H x D260.5 x 183.5 x 39.5mm
Box dimensions W x H x D310 x 160 x 370mm
Weight (without box)1.4kg
Weight (without stand)2.7kg
EAN code4948570124107
*
*
*
*
