Axon D5 Fliptop Cash Drawer With Insert

Cash drawer. Flip-top design with vertical opening. Dimensions: 460 x 170 x 100 mm. Stainless steel SS302 top cover. Steel body (0.8–2.0 mm thick). ABS insert with 7 bill and 8 coin compartments. Lockable lid with 2 keys. 3-position external lock. Solenoid (6–36V) with open/close sensor. RJ11/12, DSUB9 interface. Cable length: 3.0 m. Tested for 2 million cycles.


Included in the box: Cash drawer, lockable lid & 2 sets of keys (1 set for the drawer and another set for the Removable Box).


Availability: 3 in stock
SKU: 909000118
Reference Code: AXN-POS-CASHFT
€135.00 incl VAT
decrease increase
Share
banner

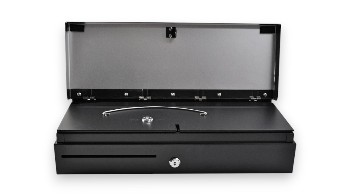

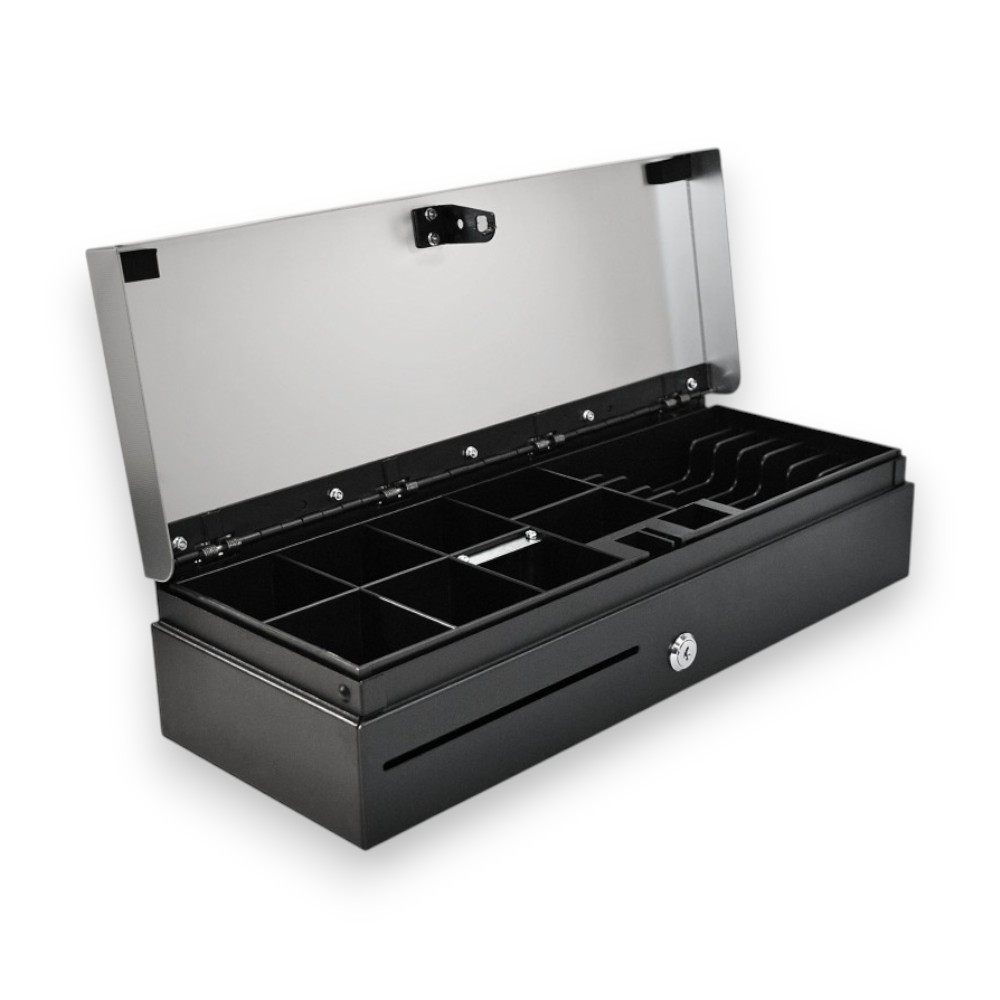

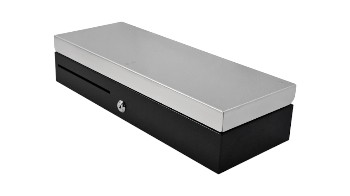

The Axon D5 Fliptop Cash Drawer is designed for high-volume retail environments where reliability, durability, and space efficiency are critical. With a top cover crafted from stainless steel SS302 and a robust steel body ranging from 0.8 mm to 2.0 mm in thickness, this drawer is built to endure heavy use and secure cash handling. Its flip-top vertical opening and compact 460 x 170 x 100 mm dimensions make it ideal for use in retail counters with limited space.

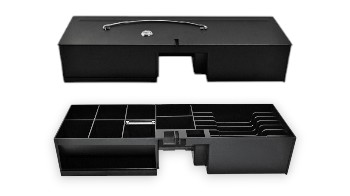

Internally, it features an ABS insert offering 7 bill compartments with adjustable dividers and 8 fixed coin slots, as well as a storage area beneath the coin section for large bills and receipts. A front slot allows quick insertion of large notes or documents without opening the drawer. Security is ensured with a top cover lock, 2 included keys, and a 3-position external lock available in multiple key configurations. The solenoid supports voltages from 6V to 36V with an open/close sensor, and various connectivity options are available including RJ11, RJ12, and DSUB9. Tested for up to 2 million open/close cycles, this heavy-duty cash drawer is perfect for franchise chains, supermarkets, and busy retail environments.


Build & Durability

  • Stainless steel SS302 top cover and steel body (0.8–2.0 mm thick)
  • Heavy-duty structure tested for up to 2 million cycles
  • Compact flip-top design ideal for tight counter spaces

Storage & Security

  • ABS insert with 7 bill compartments and 8 coin compartments
  • Front slot for large notes and receipts
  • 3-position external lock with optional multiple key combinations

Connectivity & Integration

  • Solenoid compatible with 6V, 9V, 12V, 24V, 36V systems
  • RJ11/12 and DSUB9 interface with open/close sensor
  • 3.0 m cable included for flexible POS integration

The Axon D5 Fliptop Cash Drawer is designed for high-volume retail environments where reliability, durability, and space efficiency are critical. With a top cover crafted from stainless steel SS302 and a robust steel body ranging from 0.8 mm to 2.0 mm in thickness, this drawer is built to endure heavy use and secure cash handling. Its flip-top vertical opening and compact 460 x 170 x 100 mm dimensions make it ideal for use in retail counters with limited space.


Internally, it features an ABS insert offering 7 bill compartments with adjustable dividers and 8 fixed coin slots, as well as a storage area beneath the coin section for large bills and receipts. A front slot allows quick insertion of large notes or documents without opening the drawer. Security is ensured with a top cover lock, 2 included keys, and a 3-position external lock available in multiple key configurations. The solenoid supports voltages from 6V to 36V with an open/close sensor, and various connectivity options are available including RJ11, RJ12, and DSUB9. Tested for up to 2 million open/close cycles, this heavy-duty cash drawer is perfect for franchise chains, supermarkets, and busy retail environments.


Build & Durability

  • Stainless steel SS302 top cover and steel body (0.8–2.0 mm thick)
  • Heavy-duty structure tested for up to 2 million cycles
  • Compact flip-top design ideal for tight counter spaces

Storage & Security

  • ABS insert with 7 bill compartments and 8 coin compartments
  • Front slot for large notes and receipts
  • 3-position external lock with optional multiple key combinations

Connectivity & Integration

  • Solenoid compatible with 6V, 9V, 12V, 24V, 36V systems
  • RJ11/12 and DSUB9 interface with open/close sensor
  • 3.0 m cable included for flexible POS integration
CategoryCash Drawer Specifications
Dimensions (L x W x H)460 x 170 x 100 mm
Construction MaterialTop cover: Stainless Steel SS302; Structure: Steel (0.8 mm to 2.0 mm)
ColorBlack (body), Stainless steel (cover)
Design FeaturesTop cover opening system, front slot for large bills/receipts, cover with handle and lock
Insert Configuration7 bills / 8 coins, removable ABS insert, adjustable bill dividers, fixed coin compartments with storage beneath
Locking SystemExternal lock with 3 positions, includes 2 keys, supports single or 150 key combinations
Solenoid Voltage Options6V, 9V, 12V, 24V, 36V with open/close sensor
ConnectivityRJ11/12, Female RJ12, DSUB9 RJ11/12
PIN Layout1# Ground, 2# Solenoid, 3# Microswitch, 4# Solenoid, 5# Microswitch, 6# Signal Ground
Cable Length3.00 m
Weight7.0 kg
DurabilityTested for up to 2,000,000 cycles
CertificationsTÜV Mechanical Safe Test Report, Drop Test, Vibration Test
RoHS (Directive 2011/65/EU), CE (2001/95/CE, 2014/35/EU)
*
*
*
*
