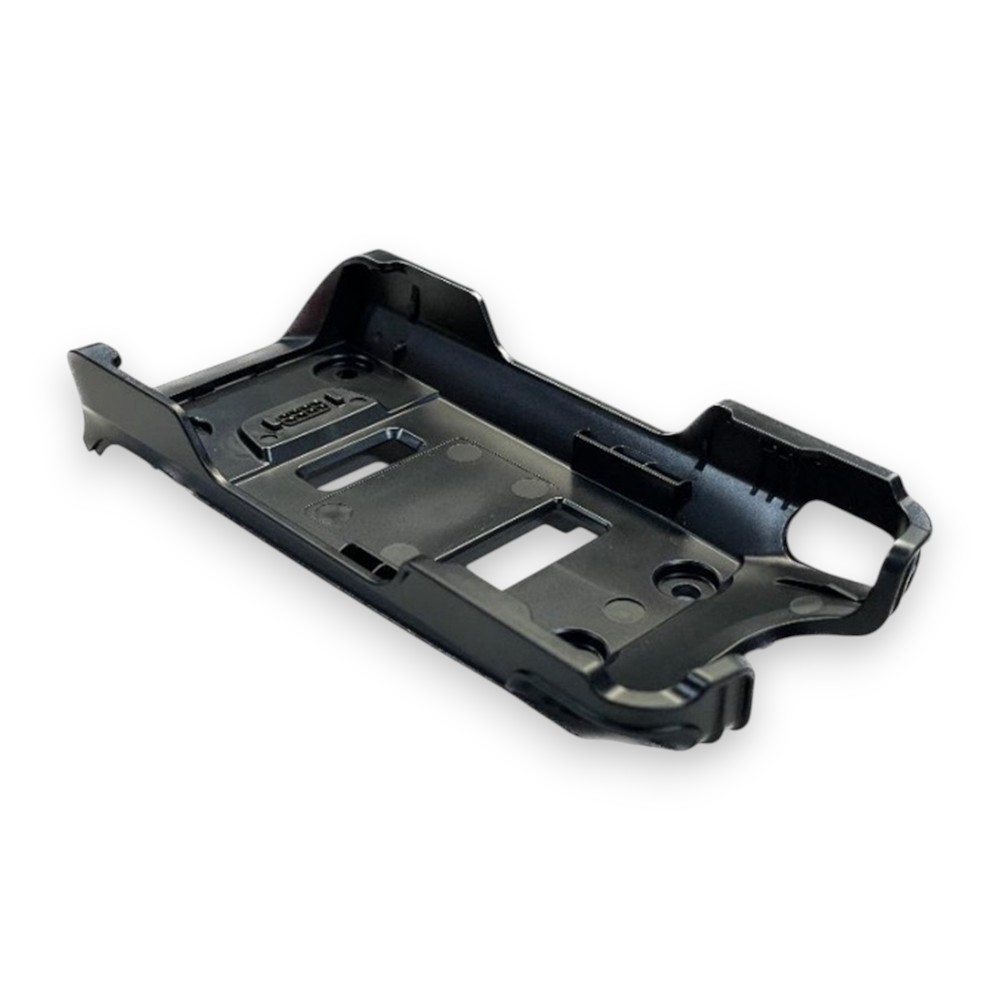

Zebra eConnex Adapter TC22/27 (8 Pin Only) for RFD40 Mount

Previous productZebra DS9908-SR - 2D, RFID...
Next productZebra RFD40 RFID Bluetooth ...

Zebra ADP-RFD40-TC2X-2E eConnex adapter for Zebra RFD40 RFID sled, allows supported Zebra TC22/TC27 8-pin mobile computers to be mounted directly onto the RFD40, mechanical/electrical interface accessory for combined handheld RFID operation.


Compatible mount for the RFD40 Sled Standard

Manufacturer: Zebra
Availability: Out of stock
SKU: 20745
Reference Code: ADP-RFD40-TC2X-2E
€92.67 incl VAT
€82.00 incl VAT
decrease increase
Share
banner

The Zebra ADP-RFD40-TC2X-2E is an eConnex adapter designed to mount compatible Zebra TC22 and TC27 mobile computers directly onto the Zebra RFD40 RFID sled. It provides the physical and electrical interface needed to combine the mobile computer and RFID reader into a single handheld unit for inventory, asset tracking and RFID data capture applications.


This adapter is specifically intended for the 8-pin versions of the Zebra TC22 and TC27. It is required when these mobile computers are used directly on top of the RFD40, providing a secure integrated connection between the host device and the RFID sled.

The Zebra ADP-RFD40-TC2X-2E is an eConnex adapter designed to mount compatible Zebra TC22 and TC27 mobile computers directly onto the Zebra RFD40 RFID sled. It provides the physical and electrical interface needed to combine the mobile computer and RFID reader into a single handheld unit for inventory, asset tracking and RFID data capture applications.


This adapter is specifically intended for the 8-pin versions of the Zebra TC22 and TC27. It is required when these mobile computers are used directly on top of the RFD40, providing a secure integrated connection between the host device and the RFID sled.

CategoryDetails
Model / Part NumberADP-RFD40-TC2X-2E
Product NameZebra eConnex Adapter for TC22 / TC27 and RFD40
ManufacturerZebra Technologies
Product TypeRFID Sled Mounting and Electrical Connection Adapter
Compatible Mobile ComputersZebra TC22 and TC27 with 8-Pin Rear I/O Connector
Compatible RFID ReadersZebra RFD40 Standard, Premium and Premium Plus
Connection TechnologyZebra eConnex Direct Electrical Connection
Mobile Computer Interface8-Pin Rear I/O Connector
Connection TypeDirect Wired Communication Between Mobile Computer and RFID Sled
Mounting PositionMounts Compatible TC22 / TC27 Mobile Computer on Top of RFD40 RFID Sled
Charging SupportSupports Charging of Attached TC22 / TC27 Through eConnex When Using Compatible RFD40 Charging Accessories
Battery CompatibilityCompatible with TC22 / TC27 Standard and Extended Capacity Batteries
Hand Strap CompatibilityCompatible with TC22 / TC27 Hand Strap Installed
Protective Boot CompatibilityNot Compatible with TC22 / TC27 Protective Boot Installed
Additional Exoskeleton RequiredNo
Bluetooth RequiredNo – Uses Direct eConnex Communication
InstallationAttaches to Compatible RFD40 RFID Sled to Secure and Connect the TC22 / TC27 Mobile Computer
Charging AccessoriesCompatible RFD40 Universal / Third-Party Cradles or Snap-On Charging Cable (CBL-RFD49-USB1-01)
Included in Box1 × Zebra eConnex Adapter for TC22 / TC27 (ADP-RFD40-TC2X-2E)
Mobile Computer IncludedNo – Sold Separately
RFID Reader IncludedNo – Sold Separately
ApplicationsRFID Inventory Management, Asset Tracking, Warehouse Operations, Retail Stocktaking and Logistics
*
*
*
*
